Python client and API for accessing PIASOmarkerDB#

Import PIASO#

[1]:

import piaso

/n/data1/hms/neurobio/fishell/mindai/.conda/envs/nca/lib/python3.10/site-packages/tqdm/auto.py:21: TqdmWarning: IProgress not found. Please update jupyter and ipywidgets. See https://ipywidgets.readthedocs.io/en/stable/user_install.html
  from .autonotebook import tqdm as notebook_tqdm

Import other packages#

[2]:

import numpy as np
import pandas as pd
import scanpy as sc
sc.set_figure_params(dpi=80,dpi_save=300, color_map='viridis',facecolor='white')
from matplotlib import rcParams
# To modify the default figure size, use rcParams.
rcParams['figure.figsize'] = 4, 4
rcParams['font.sans-serif'] = "Arial"
rcParams['font.family'] = "Arial"
sc.settings.verbosity = 3
sc.logging.print_header()

/tmp/ipykernel_4126893/1353975569.py:11: RuntimeWarning: Failed to import dependencies for application/vnd.jupyter.widget-view+json representation. (ModuleNotFoundError: No module named 'ipywidgets')
  sc.logging.print_header()

[2]:
ComponentInfo
Python3.10.19 (main, Oct 21 2025, 16:43:05) [GCC 11.2.0]
OSLinux-5.14.0-570.23.1.el9_6.x86_64-x86_64-with-glibc2.34
CPU32 logical CPU cores, x86_64
GPUNo GPU found
Updated2026-01-20 19:17
Dependencies
DependencyVersion
h5py3.15.1
tqdm4.67.1
stack_data0.6.3
wcwidth0.2.13
pillow12.0.0
joblib1.5.3
requests2.32.5
debugpy1.8.16
texttable1.7.0
kiwisolver1.4.9
asttokens3.0.0
six1.17.0
natsort8.4.0
pure_eval0.2.3
charset-normalizer3.4.4
python-dateutil2.9.0.post0
torch2.9.1 (2.9.1+cu128)
tornado6.5.4
parso0.8.5
pytz2025.2
leidenalg0.10.2
jedi0.19.2
networkx3.4.2
executing2.2.1
setuptools80.9.0
cycler0.12.1
igraph0.11.9
statsmodels0.14.6
ipython8.30.0
decorator5.2.1
certifi2026.1.4 (2026.01.04)
patsy1.0.2
psutil7.0.0
llvmlite0.46.0
prompt_toolkit3.0.52
numba0.63.1
Copyable Markdown
| Dependency         | Version               |
| ------------------ | --------------------- |
| h5py               | 3.15.1                |
| tqdm               | 4.67.1                |
| stack_data         | 0.6.3                 |
| wcwidth            | 0.2.13                |
| pillow             | 12.0.0                |
| joblib             | 1.5.3                 |
| requests           | 2.32.5                |
| debugpy            | 1.8.16                |
| texttable          | 1.7.0                 |
| kiwisolver         | 1.4.9                 |
| asttokens          | 3.0.0                 |
| six                | 1.17.0                |
| natsort            | 8.4.0                 |
| pure_eval          | 0.2.3                 |
| charset-normalizer | 3.4.4                 |
| python-dateutil    | 2.9.0.post0           |
| torch              | 2.9.1 (2.9.1+cu128)   |
| tornado            | 6.5.4                 |
| parso              | 0.8.5                 |
| pytz               | 2025.2                |
| leidenalg          | 0.10.2                |
| jedi               | 0.19.2                |
| networkx           | 3.4.2                 |
| executing          | 2.2.1                 |
| setuptools         | 80.9.0                |
| cycler             | 0.12.1                |
| igraph             | 0.11.9                |
| statsmodels        | 0.14.6                |
| ipython            | 8.30.0                |
| decorator          | 5.2.1                 |
| certifi            | 2026.1.4 (2026.01.04) |
| patsy              | 1.0.2                 |
| psutil             | 7.0.0                 |
| llvmlite           | 0.46.0                |
| prompt_toolkit     | 3.0.52                |
| numba              | 0.63.1                |

| Component | Info                                                     |
| --------- | -------------------------------------------------------- |
| Python    | 3.10.19 (main, Oct 21 2025, 16:43:05) [GCC 11.2.0]       |
| OS        | Linux-5.14.0-570.23.1.el9_6.x86_64-x86_64-with-glibc2.34 |
| CPU       | 32 logical CPU cores, x86_64                             |
| GPU       | No GPU found                                             |
| Updated   | 2026-01-20 19:17                                         |

Setting paths#

[3]:

path = '/home/mid166/Analysis/Jupyter/Python/Longitudinal/Integration'
import sys
sys.path.append(path)
from env_settings import *
sc.set_figure_params(dpi=80,dpi_save=300, color_map='viridis',facecolor='white')
rcParams['figure.figsize'] = 4, 4
save_dir='/n/scratch/users/m/mid166/Result/single-cell/Methods/COSG/Database'
### Create the save_dir if not existed
!mkdir -p {save_dir}

Load the adult mouse cortex RNA#

Google Drive link: https://drive.google.com/file/d/1bEyWNjGvoA9kz3J6jnbXRKgAIytb555W

mkdir -p /n/scratch/users/m/mid166/Result/single-cell/Enhancer/AdultCortexMultiome
cd /n/scratch/users/m/mid166/Result/single-cell/Enhancer/AdultCortexMultiome
gdrive files download 1bEyWNjGvoA9kz3J6jnbXRKgAIytb555W

[4]:

adata=sc.read('/n/scratch/users/m/mid166/Result/single-cell/Enhancer/AdultCortexMultiome/AdultCortexMultiomeRNA_integrated_anno.h5ad')

[5]:

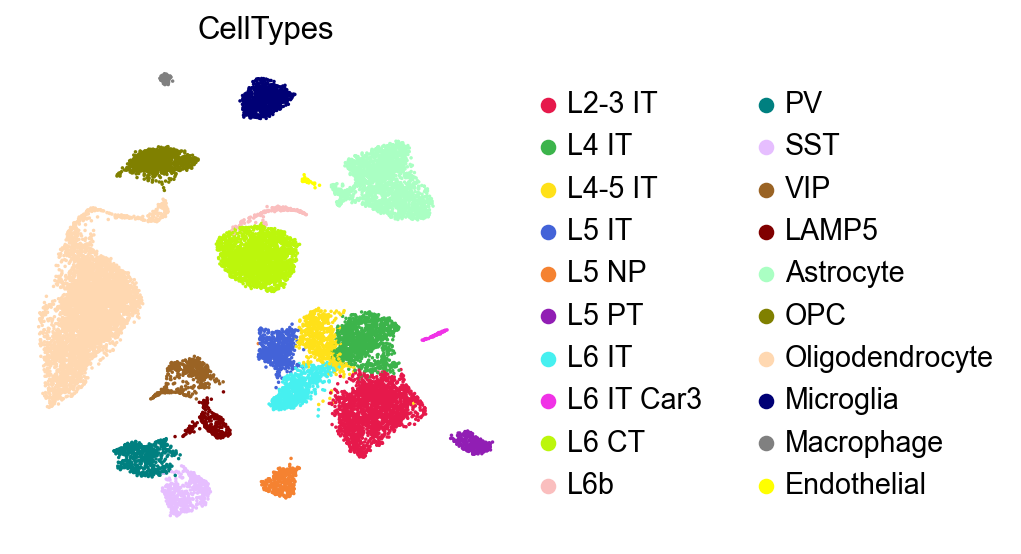

sc.pl.umap(adata,
           color=['CellTypes'],
           palette=self_palette2,
           # legend_loc='on data',
           legend_fontoutline=2,
           legend_fontweight=5,
           cmap='Spectral_r',
           ncols=3,
           size=10,
           frameon=False)
../_images/notebooks_31_PIASO_PIASOmarkerDB_API_mouseCortex_11_0.png

PIASOmarkerDB API#

PIASOmarkerDB is accessible via https://piaso.org/piasomarkerdb/.

Query by gene#

[6]:

marker_df = piaso.tl.queryPIASOmarkerDB(gene="Fezf2")

[7]:

marker_df.head(10)

[7]:
cell_type condition gene species specificity_score study_publication tissue
0 119 SI-MA-LPO-LHA Skor1 Glut normal Fezf2 Mouse 6.785830 AllenWholeMouseBrain_GABA brain
1 131 LHA-AHN-PVH Otp Trh Glut normal Fezf2 Mouse 6.384136 AllenWholeMouseBrain_GABA brain
2 032 L5 NP CTX Glut normal Fezf2 Mouse 5.638977 AllenWholeMouseBrain_Neuron brain
3 Ex_Fezf2 normal Fezf2 Mouse 5.496620 MacoskoWholeMouseBrain_nuclei_Neuron_AnnoL2 brain
4 023 SUB-ProS Glut normal Fezf2 Mouse 5.360841 AllenWholeMouseBrain_Neuron brain
5 022 L5 ET CTX Glut normal Fezf2 Mouse 5.340233 AllenWholeMouseBrain_Neuron brain
6 319 Astro-TE NN normal Fezf2 Mouse 5.327042 AllenWholeMouseBrain_NonNeuron brain
7 Ex_Vwc2l normal Fezf2 Mouse 4.739503 MacoskoWholeMouseBrain_nuclei_Neuron_AnnoL2 brain
8 SUB-ProS Glut_3 normal; ageing Fezf2 Mouse 4.675560 AllenAgeingBrainAtlas2025_supertype brain
9 033 NP SUB Glut normal Fezf2 Mouse 4.618183 AllenWholeMouseBrain_Neuron brain

Query by multiple genes#

[8]:

marker_df = piaso.tl.queryPIASOmarkerDB(gene=["Fezf2", "Satb2", "Tbr1"])

[9]:

marker_df.head(10)

[9]:
cell_type condition gene species specificity_score study_publication tissue
0 Fibro_Vdr normal Satb2 Mouse 13.416058 MacoskoWholeMouseBrain_nuclei_NonNeuron_AnnoL2 brain
1 112 GPi Tbr1 Cngb3 Gaba-Glut normal Tbr1 Mouse 9.910396 AllenWholeMouseBrain_GABA brain
2 Ng_Lhx1 normal Tbr1 Mouse 9.585728 MacoskoWholeMouseBrain_nuclei_NonNeuron_AnnoL2 brain
3 119 SI-MA-LPO-LHA Skor1 Glut normal Tbr1 Mouse 9.344679 AllenWholeMouseBrain_GABA brain
4 088 BST Tac2 Gaba normal Satb2 Mouse 7.589609 AllenWholeMouseBrain_GABA brain
5 099 SBPV-PVa Six6 Satb2 Gaba normal Satb2 Mouse 6.996956 AllenWholeMouseBrain_GABA brain
6 large intestine goblet cell normal SATB2 Human 6.796177 TabulaSapiens_10X multiple
7 enterocyte of epithelium of large intestine normal SATB2 Human 6.786366 TabulaSapiens_10X multiple
8 119 SI-MA-LPO-LHA Skor1 Glut normal Fezf2 Mouse 6.785830 AllenWholeMouseBrain_GABA brain
9 038 DG-PIR Ex IMN normal Tbr1 Mouse 6.649887 AllenWholeMouseBrain_NonNeuron brain

Query by study#

[10]:

marker_df = piaso.tl.queryPIASOmarkerDB(
        study="AllenWholeMouseBrain_isocortex",
        species="mouse",
        # limit=10
)

[11]:

marker_df

[11]:
cell_type condition gene species specificity_score study_publication tissue
0 056 Sst Chodl Gaba normal Chodl Mouse 14.086876 AllenWholeMouseBrain_isocortex brain; cortex
1 056 Sst Chodl Gaba normal Krt18 Mouse 13.081692 AllenWholeMouseBrain_isocortex brain; cortex
2 051 Pvalb chandelier Gaba normal Vmn1r209 Mouse 12.826864 AllenWholeMouseBrain_isocortex brain; cortex
3 330 VLMC NN normal Slc22a6 Mouse 11.932269 AllenWholeMouseBrain_isocortex brain; cortex
4 335 BAM NN normal F13a1 Mouse 11.871344 AllenWholeMouseBrain_isocortex brain; cortex
... ... ... ... ... ... ... ...
1295 005 L5 IT CTX Glut normal Phex Mouse 1.709302 AllenWholeMouseBrain_isocortex brain; cortex
1296 005 L5 IT CTX Glut normal Lynx1 Mouse 1.699085 AllenWholeMouseBrain_isocortex brain; cortex
1297 005 L5 IT CTX Glut normal Gm2694 Mouse 1.677627 AllenWholeMouseBrain_isocortex brain; cortex
1298 005 L5 IT CTX Glut normal A2ml1 Mouse 1.676827 AllenWholeMouseBrain_isocortex brain; cortex
1299 005 L5 IT CTX Glut normal Gm50304 Mouse 1.671815 AllenWholeMouseBrain_isocortex brain; cortex

1300 rows × 7 columns

Query with score filter#

[12]:

marker_df = piaso.tl.queryPIASOmarkerDB(
    species="Human",
    min_score=8.0,
    limit=100
)

[13]:

marker_df.head(20)

[13]:
cell_type condition gene species specificity_score study_publication tissue
0 Neut normal CEACAM8 Human 22.576055 YayonTeichmann2023Thymus_broad thymus
1 Neut normal PGLYRP1 Human 22.467628 YayonTeichmann2023Thymus_broad thymus
2 Neut normal CAMP Human 22.386975 YayonTeichmann2023Thymus_broad thymus
3 Neut normal MMP8 Human 22.354010 YayonTeichmann2023Thymus_broad thymus
4 Neut normal TCN1 Human 22.239567 YayonTeichmann2023Thymus_broad thymus
5 Neut normal DEFA3 Human 22.141212 YayonTeichmann2023Thymus_broad thymus
6 Neut normal BPI Human 21.663849 YayonTeichmann2023Thymus_broad thymus
7 Myelocyte normal DEFA3 Human 21.135054 YayonTeichmann2023Thymus thymus
8 erythrocyte normal ALAS2 Human 21.131534 TabulaSapiens_10X multiple
9 erythrocyte normal ENSG00000290010.1 Human 21.073169 TabulaSapiens_10X multiple
10 erythrocyte normal HBM Human 20.988997 TabulaSapiens_10X multiple
11 Neut normal ARG1 Human 20.970731 YayonTeichmann2023Thymus_broad thymus
12 erythrocyte normal SLC4A1 Human 20.866775 TabulaSapiens_10X multiple
13 erythrocyte normal IFIT1B Human 20.742300 TabulaSapiens_10X multiple
14 erythrocyte normal HBQ1 Human 20.688987 TabulaSapiens_10X multiple
15 Neut normal CRISP3 Human 20.649712 YayonTeichmann2023Thymus_broad thymus
16 acinar cell normal LCN1P1 Human 20.612447 TabulaSapiens_10X multiple
17 erythrocyte normal ENSG00000290038.1 Human 20.544104 TabulaSapiens_10X multiple
18 erythrocyte normal EPB42 Human 20.501436 TabulaSapiens_10X multiple
19 erythrocyte normal AHSP Human 20.452516 TabulaSapiens_10X multiple

Get Markers as Dictionary#

[14]:

marker_df, marker_dict = piaso.tl.queryPIASOmarkerDB(
    study='AllenWholeMouseBrain_isocortex',
        # species="Human",
        # min_score=3.0,
        # limit=500,
    as_dict=True
)

[15]:

print(f"DataFrame shape: {marker_df.shape}")
print(f"Cell types in dict: {len(marker_dict)}")

# Show sample
for ct, genes in list(marker_dict.items())[:3]:
    print(f"\n  {ct}:")
    print(f"    Markers: {genes[:5]}...")

DataFrame shape: (1300, 7)
Cell types in dict: 26

  056 Sst Chodl Gaba:
    Markers: ['Chodl', 'Krt18', 'P2rx2', '4930545L08Rik', 'Tacr1']...

  051 Pvalb chandelier Gaba:
    Markers: ['Vmn1r209', 'Vmn1r207-ps', 'Dbhos', 'Nkx2-1', 'Sfta3-ps']...

  330 VLMC NN:
    Markers: ['Slc22a6', 'Aldh1a2', 'Slc13a4', 'Fam180a', 'Lum']...

List available studies#

[16]:

studies = piaso.tl.queryPIASOmarkerDB(list_studies=True)
print(f"Total studies: {len(studies)}")
print("First 10 studies:")
for study in studies[:10]:
    print(f"  - {study}")

Total studies: 36
First 10 studies:
  - AllenAgeingBrainAtlas2025_supertype
  - AllenDevVisualCortex2025_RNA
  - AllenHumanImmuneHealthAtlas_L2
  - AllenHumanImmuneHealthAtlas_L3
  - AllenWholeMouseBrain_GABA
  - AllenWholeMouseBrain_Neuron
  - AllenWholeMouseBrain_NonNeuron
  - AllenWholeMouseBrain_isocortex
  - AsianImmuneDiversityAtlasPhase1v2_5prime
  - DiBellaArlotta2021

Analyze single gene list#

[17]:

def example_analyze_single_list():
    """Demonstrate single gene list analysis."""
    print("\n" + "="*60)
    print("Example 4: Analyze Single Gene List")
    print("="*60)

    # T-cell marker genes
    t_cell_genes = ["CD3E", "CD3D", "CD8A", "GZMK", "PRF1", "IFNG"]

    print(f"\n--- Analyzing genes: {t_cell_genes} ---")
    df = piaso.tl.analyzeMarkers(t_cell_genes, species="Human")

    print(f"Found {len(df)} cell type matches")
    if len(df) > 0:
        print("\nTop 5 matches:")
        print(df[['cell_type', 'matched_gene_count', 'avg_specificity']].head())

[18]:

query_genes = ["Syt6", "Tle4", "Hs3st4", "Col6a1", "Zfpm2", "Sema5a", "Bcl11b", "Fezf2", "Foxp2", "Col12a1"]
print(f"\n--- Analyzing genes: {query_genes} ---")
marker_df = piaso.tl.analyzeMarkers(query_genes)
marker_df.head()


--- Analyzing genes: ['Syt6', 'Tle4', 'Hs3st4', 'Col6a1', 'Zfpm2', 'Sema5a', 'Bcl11b', 'Fezf2', 'Foxp2', 'Col12a1'] ---

[18]:
cell_type study_publication species tissue condition matched_gene_count matched_genes avg_specificity
0 EN-L6-CT WangKriegstein2025 Human brain normal 6 SYT6,HS3ST4,FOXP2,TLE4,FEZF2,ZFPM2 2.981403
1 CThPN DiBellaArlotta2021 Mouse brain; cortex normal 5 Hs3st4,Syt6,Tle4,Zfpm2,Foxp2 4.958002
2 439_L6 CT CTX Glut_1 AllenDevVisualCortex2025_RNA Mouse iscortex; brain normal; developmental 5 Syt6,Foxp2,Tle4,Hs3st4,Zfpm2 3.561619
3 437_L6 CT CTX Glut_1 AllenDevVisualCortex2025_RNA Mouse iscortex; brain normal; developmental 5 Syt6,Foxp2,Zfpm2,Hs3st4,Tle4 2.928945
4 440_L6 CT CTX Glut_1 AllenDevVisualCortex2025_RNA Mouse iscortex; brain normal; developmental 5 Fezf2,Tle4,Col12a1,Hs3st4,Foxp2 2.678869

Analyze Multiple Gene Sets (Dictionary)#

[19]:

gene_sets = {
    'Cluster_0': ['Cx3cr1', 'P2ry12', 'Teme119', 'Csf1r', 'Itgam', 'Aif1', 'Trem2'],
    'Cluster_1': ["Syt6", "Tle4", "Hs3st4", "Col6a1", "Zfpm2", "Sema5a", "Bcl11b", "Fezf2", "Foxp2", "Col12a1"],
}

print("\n--- Input Gene Sets ---")
for name, genes in gene_sets.items():
    print(f"  {name}: {genes}")

print("\n--- Analyzing... ---")
# results, top_hits = piaso.tl.analyzeMarkers(gene_sets, species="Mouse")
results, top_hits = piaso.tl.analyzeMarkers(gene_sets)

print("\nCell Type Predictions:")
for cluster, cell_type in top_hits.items():
    print(f"  {cluster}: {cell_type}")

# Show detailed results
print(f"\n--- Detailed results for Cluster_0 ---")
if 'Cluster_0' in results and len(results['Cluster_0']) > 0:
    print(results['Cluster_0'][['cell_type', 'matched_gene_count',  'avg_specificity',  'study_publication']].head())

print(f"\n--- Detailed results for Cluster_1 ---")
if 'Cluster_0' in results and len(results['Cluster_1']) > 0:
    print(results['Cluster_1'][['cell_type', 'matched_gene_count',  'avg_specificity',  'study_publication']].head())


--- Input Gene Sets ---
  Cluster_0: ['Cx3cr1', 'P2ry12', 'Teme119', 'Csf1r', 'Itgam', 'Aif1', 'Trem2']
  Cluster_1: ['Syt6', 'Tle4', 'Hs3st4', 'Col6a1', 'Zfpm2', 'Sema5a', 'Bcl11b', 'Fezf2', 'Foxp2', 'Col12a1']

--- Analyzing... ---

Cell Type Predictions:
  Cluster_0: Microglia
  Cluster_1: EN-L6-CT

--- Detailed results for Cluster_0 ---
             cell_type  matched_gene_count  avg_specificity  \
0            Microglia                   5        13.000120
1                Mgl_9                   5         7.875872
2  5312_Microglia NN_1                   4         8.265331
3    P2RY12+ microglia                   4         7.782557
4               Mgl_11                   4         7.375123

                              study_publication
0                            DiBellaArlotta2021
1  SilettiLinnarssonWholeHumanBrain2023_subtype
2                  AllenDevVisualCortex2025_RNA
3          XuTeichmann2023_HippocampalFormation
4  SilettiLinnarssonWholeHumanBrain2023_subtype

--- Detailed results for Cluster_1 ---
              cell_type  matched_gene_count  avg_specificity  \
0              EN-L6-CT                   6         2.981403
1                 CThPN                   5         4.958002
2  439_L6 CT CTX Glut_1                   5         3.561619
3  437_L6 CT CTX Glut_1                   5         2.928945
4  440_L6 CT CTX Glut_1                   5         2.678869

              study_publication
0            WangKriegstein2025
1            DiBellaArlotta2021
2  AllenDevVisualCortex2025_RNA
3  AllenDevVisualCortex2025_RNA
4  AllenDevVisualCortex2025_RNA

COSG integration#

The piaso.tl.analyzeMarkers function will infer the cell types for each cluster or cell group based on the top marker genes identified by the marker gene identification method COSG and the cell type marker genes collected in PIASOmarkerDB.

Run COSG#

[20]:

import cosg

You could set groupby to Leiden, here is using the manually annotated cell type column as a demo:

[21]:

%%time
groupby='CellTypes'
cosg.cosg(adata,
    key_added='cosg',
    use_raw=False, layer='log1p', ## e.g., if you want to use the log1p layer in adata
    mu=100,
    expressed_pct=0.1,
    remove_lowly_expressed=True,
    n_genes_user=adata.n_vars, ### Use all the genes, to enable the calculation of transformed COSG scores
    # n_genes_user=100,
    groupby=groupby,
    return_by_group=True,
    verbosity=1
)

Finished identifying marker genes by COSG, and the results are in adata.uns['cosg'].
CPU times: user 2.54 s, sys: 366 ms, total: 2.9 s
Wall time: 2.91 s

Here, we take the top 50 marker genes for each group:

[22]:

cosg_marker_df=pd.DataFrame(adata.uns['cosg']['names']).head(50)

[23]:

cosg_marker_df.head()

[23]:
L2-3 IT L4 IT L4-5 IT L5 IT L5 NP L5 PT L6 IT L6 IT Car3 L6 CT L6b PV SST VIP LAMP5 Astrocyte OPC Oligodendrocyte Microglia Macrophage Endothelial
0 Otof Rspo1 Scn7a Deptor Trhr Gm42705 Slc26a4 Gm6602 Foxp2 Nxph4 Adamts15 Sst Vip Ndnf Gja1 Pdgfra St18 Selplg F13a1 Slco1a4
1 Ccbe1 Gm40331 Tnnc1 Il1rapl2 Myzap Shoc1 Bmp3 Car3 Col5a1 Ccn2 Pvalb Pdyn Htr3a Pde11a Gli3 Cspg4 Prr5l Siglech Ms4a4a Cldn5
2 Evc2 Gm42953 BC006965 Rxfp2 Slc17a8 Gm42707 Dnah14 Gm49272 Syt6 Gm41414 6330411D24Rik Hpse Tac2 Ltbp2 Gjb6 C1ql1 Mog Tmem119 Pf4 Adgrl4
3 B230216N24Rik Cbln4 Hgf Fras1 Mirt1 L3mbtl4 Rspo2 Oprk1 Cpa6 Cplx3 Tac1 Tnni3k Grpr Myo3a Ntsr2 Tmem255b Cldn11 Gm2629 Cd163 Flt1
4 Efcab1 Col8a1 1700047F07Rik Tmem91 Hmga2 Gm6260 Galnt14 BB557941 Rprm Clic5 Gm26633 Crhbp Npy2r Myo3b Gm6145 Neu4 Mobp Olfml3 Aoah Abcb1a
[24]:

%%time
results, top_hits = piaso.tl.analyzeMarkers(
        cosg_marker_df,
        n_top_genes=50,
        species="mouse",
)

CPU times: user 576 ms, sys: 19.5 ms, total: 596 ms
Wall time: 3.56 s

[25]:

print("\nCell Type Predictions:")
for cluster, cell_type in top_hits.items():
    print(f"  {cluster}: {cell_type}")


Cell Type Predictions:
  L2-3 IT: 007 L2/3 IT CTX Glut
  L4 IT: 100_L4/5 IT CTX Glut_6
  L4-5 IT: L4/5 IT CTX Glut_4
  L5 IT: 005 L5 IT CTX Glut
  L5 NP: 032 L5 NP CTX Glut
  L5 PT: 022 L5 ET CTX Glut
  L6 IT: 004 L6 IT CTX Glut
  L6 IT Car3: 001 CLA-EPd-CTX Car3 Glut
  L6 CT: 437_L6 CT CTX Glut_1
  L6b: 029 L6b CTX Glut
  PV: 052 Pvalb Gaba
  SST: Sst Gaba_7
  VIP: 046 Vip Gaba
  LAMP5: 049 Lamp5 Gaba
  Astrocyte: 319 Astro-TE NN
  OPC: OPC NN_1
  Oligodendrocyte: 327 Oligo NN
  Microglia: 334 Microglia NN
  Macrophage: 335 BAM NN
  Endothelial: Endo_Flt1

[26]:

results['L2-3 IT'].head(5)

[26]:
cell_type study_publication species tissue condition matched_gene_count matched_genes avg_specificity
0 007 L2/3 IT CTX Glut AllenWholeMouseBrain_isocortex Mouse brain; cortex normal 22 Otof,Efcab1,Gm10754,Evc2,Ccbe1,B230216N24Rik,F... 3.148077
1 007 L2/3 IT CTX Glut AllenWholeMouseBrain_Neuron Mouse brain normal 16 Gm48530,Evc2,Igfn1,A830009L08Rik,Lamp5,Gm20063... 3.244823
2 L2/3 IT CTX Glut_2 AllenAgeingBrainAtlas2025_supertype Mouse brain normal; ageing 11 Clec18a,Igfn1,Ccbe1,Gm48530,Lamp5,Gm20063,E130... 3.554956
3 L2/3 IT CTX Glut_1 AllenAgeingBrainAtlas2025_supertype Mouse brain normal; ageing 11 Ccbe1,Gm48530,Otof,Itga8,Evc2,E130304I02Rik,Du... 3.502616
4 110_L2/3 IT CTX Glut_2 AllenDevVisualCortex2025_RNA Mouse iscortex; brain normal; developmental 11 Glra3,Ccbe1,Ccn3,6530403H02Rik,Gm42722,Greb1l,... 2.801682

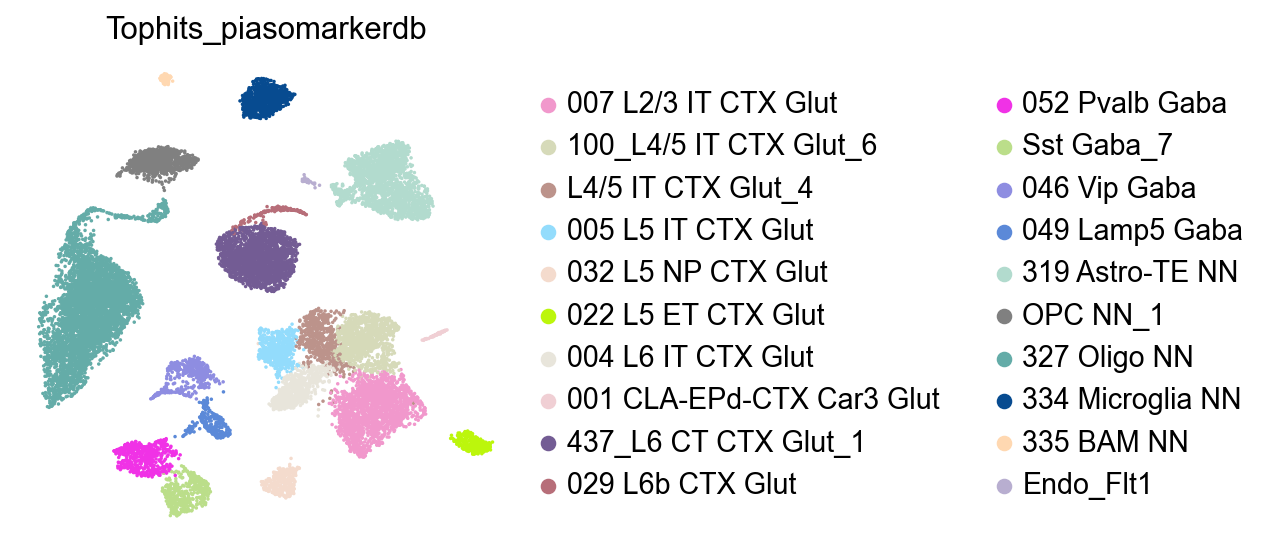

Check the prediction results#

Add annotations to AnnData:

[27]:

adata.obs['Tophits_piasomarkerdb']=adata.obs['CellTypes'].map(top_hits)

[28]:

sc.pl.umap(adata,
           color=['Tophits_piasomarkerdb'],
           palette=piaso.pl.color.d_color10,
           # legend_loc='on data',
           legend_fontoutline=2,
           legend_fontweight=5,
           cmap='Spectral_r',
           ncols=3,
           size=10,
           frameon=False)
../_images/notebooks_31_PIASO_PIASOmarkerDB_API_mouseCortex_51_0.png

The mannual annotation:

[29]:

sc.pl.umap(adata,
           color=['CellTypes'],
           palette=piaso.pl.color.d_color4,
           # legend_loc='on data',
           legend_fontoutline=2,
           legend_fontweight=5,
           cmap='Spectral_r',
           ncols=3,
           size=10,
           frameon=False)
../_images/notebooks_31_PIASO_PIASOmarkerDB_API_mouseCortex_53_0.png
[30]:

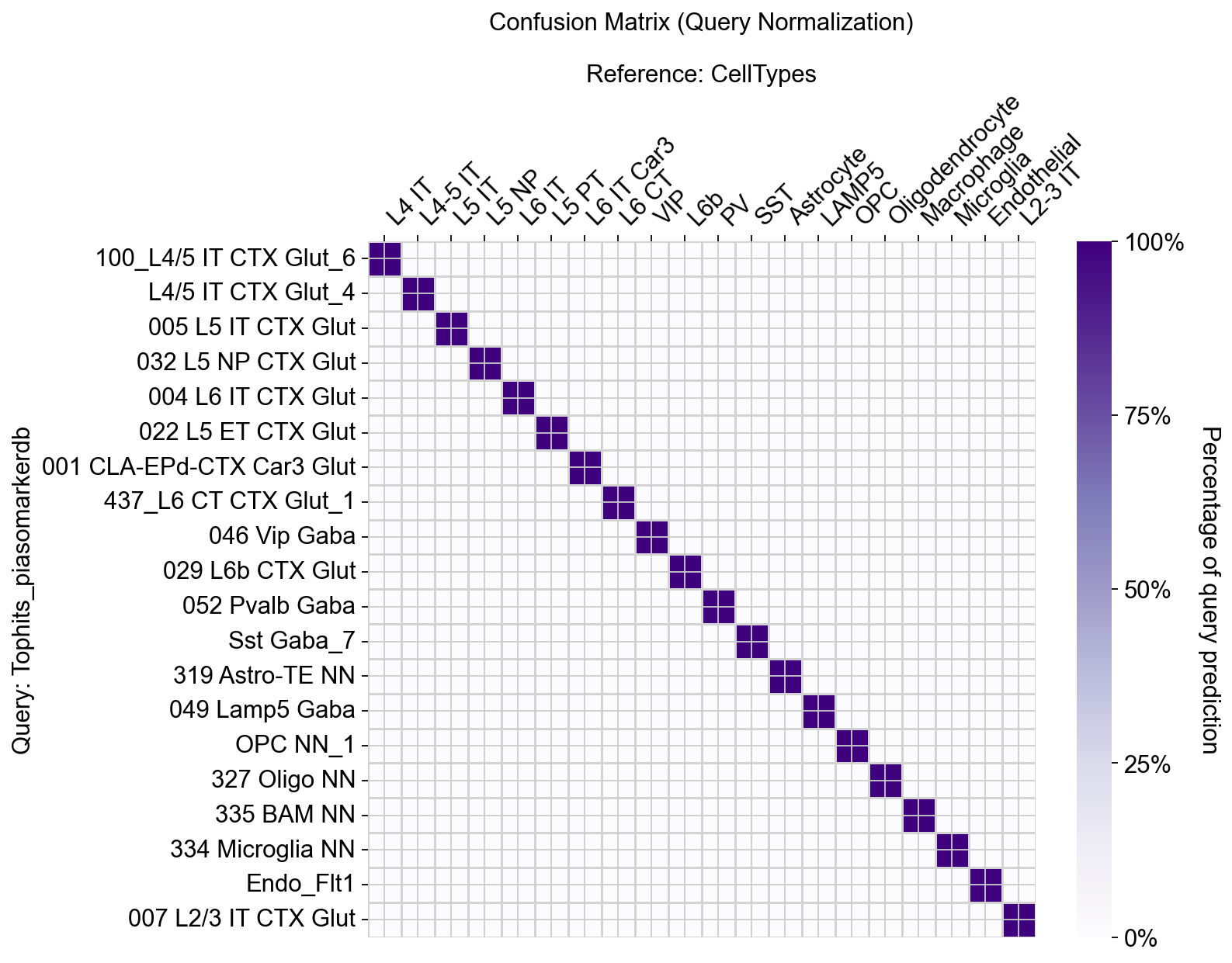

piaso.pl.plotConfusionMatrix(adata, 'Tophits_piasomarkerdb', 'CellTypes', figsize=(10, 8))
../_images/notebooks_31_PIASO_PIASOmarkerDB_API_mouseCortex_54_0.png

Specify which study or studies to use in piaso.tl.analyzeMarkers#

[31]:

%%time
results, top_hits = piaso.tl.analyzeMarkers(
        cosg_marker_df,
        n_top_genes=50,
        min_genes=5,
        studies=['AllenWholeMouseBrain_isocortex'],
        species="mouse"
)

CPU times: user 461 ms, sys: 7.07 ms, total: 469 ms
Wall time: 3.58 s

[32]:

top_hits

[32]:

{'L2-3 IT': '007 L2/3 IT CTX Glut',
 'L4 IT': '006 L4/5 IT CTX Glut',
 'L4-5 IT': '006 L4/5 IT CTX Glut',
 'L5 IT': '005 L5 IT CTX Glut',
 'L5 NP': '032 L5 NP CTX Glut',
 'L5 PT': '022 L5 ET CTX Glut',
 'L6 IT': '004 L6 IT CTX Glut',
 'L6 IT Car3': '001 CLA-EPd-CTX Car3 Glut',
 'L6 CT': '030 L6 CT CTX Glut',
 'L6b': '029 L6b CTX Glut',
 'PV': '052 Pvalb Gaba',
 'SST': '053 Sst Gaba',
 'VIP': '046 Vip Gaba',
 'LAMP5': '049 Lamp5 Gaba',
 'Astrocyte': '319 Astro-TE NN',
 'OPC': '326 OPC NN',
 'Oligodendrocyte': '327 Oligo NN',
 'Microglia': '334 Microglia NN',
 'Macrophage': '335 BAM NN',
 'Endothelial': '333 Endo NN'}

Add annotations to AnnData:

[33]:

adata.obs['Tophits_piasomarkerdb_AllenWholeMouseBrain_isocortex']=adata.obs['CellTypes'].map(top_hits)

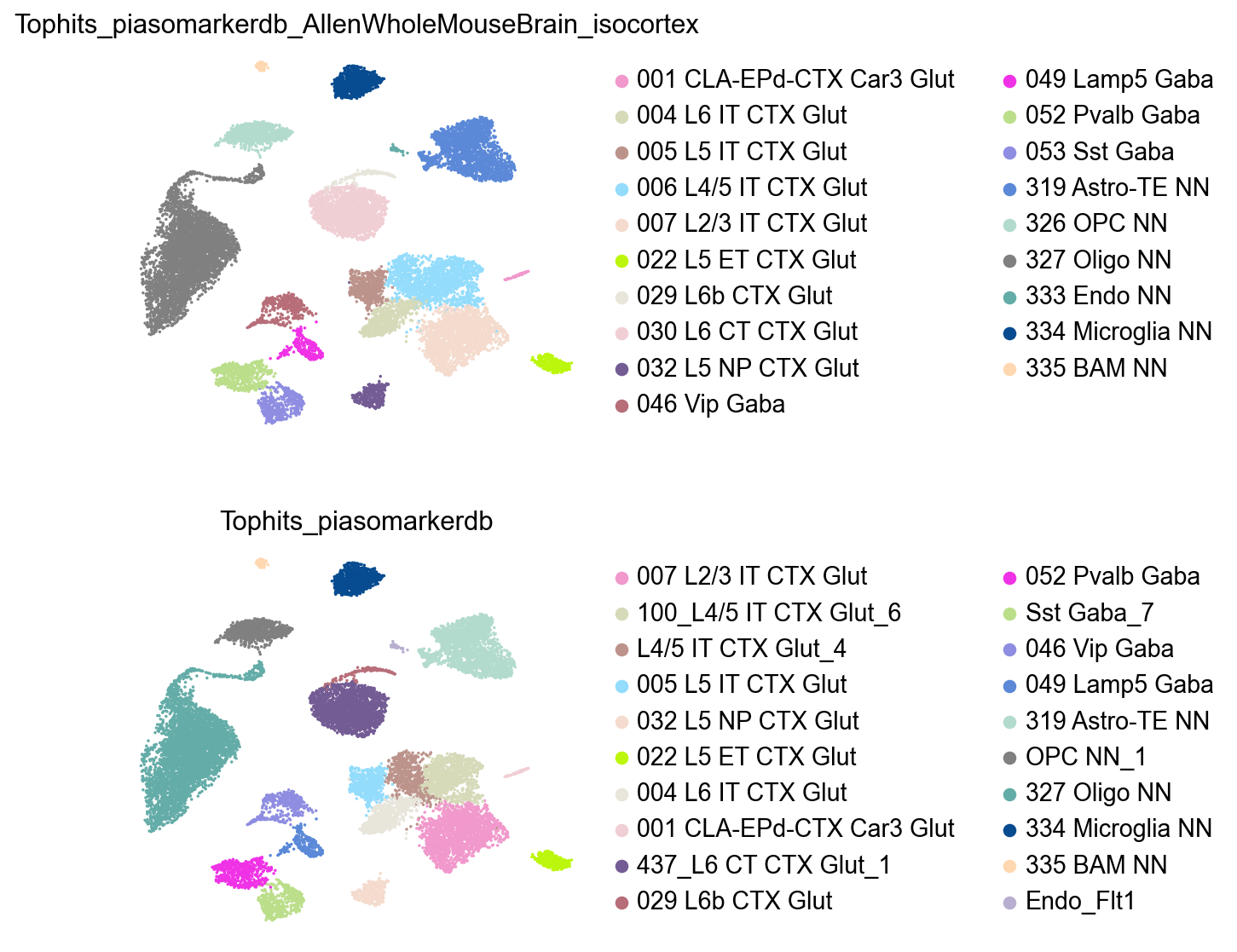

We can see the predicted annotation on the L4/5 IT is different, it’s because in the AllenWholeMouseBrain_isocortex study’s annotation, the L4/5 IT and L4 IT are not distinguished at that annotation resolution:

[34]:

sc.pl.umap(adata,
           color=[
               'Tophits_piasomarkerdb_AllenWholeMouseBrain_isocortex',
               'Tophits_piasomarkerdb'
                 ],
           palette=piaso.pl.color.d_color10,
           # legend_loc='on data',
           legend_fontoutline=2,
           legend_fontweight=5,
           cmap='Spectral_r',
           ncols=1,
           size=10,
           frameon=False)
../_images/notebooks_31_PIASO_PIASOmarkerDB_API_mouseCortex_61_0.png

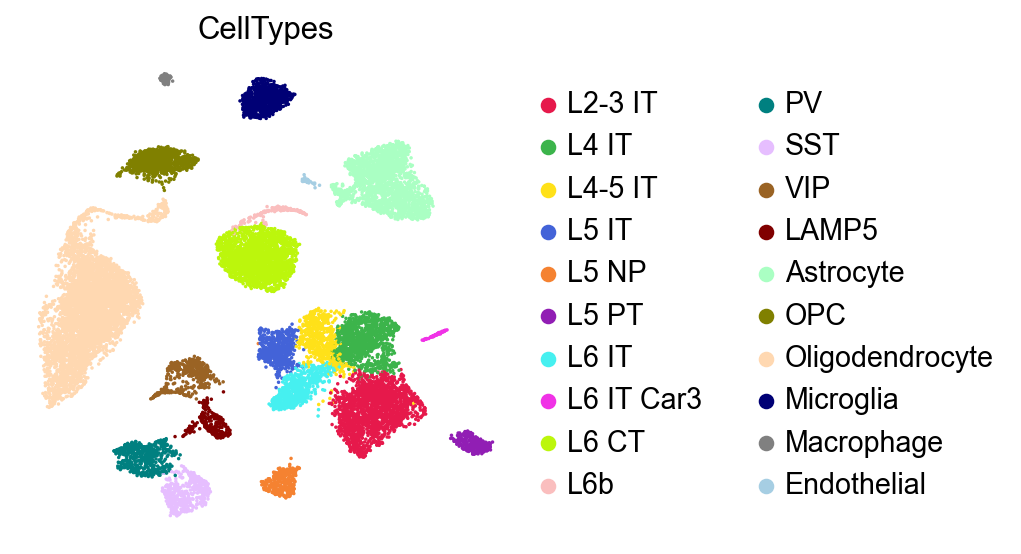

The mannual annotation:

[35]:

sc.pl.umap(adata,
           color=['CellTypes'],
           palette=piaso.pl.color.d_color4,
           # legend_loc='on data',
           legend_fontoutline=2,
           legend_fontweight=5,
           cmap='Spectral_r',
           ncols=3,
           size=10,
           frameon=False)
../_images/notebooks_31_PIASO_PIASOmarkerDB_API_mouseCortex_63_0.png
[36]:

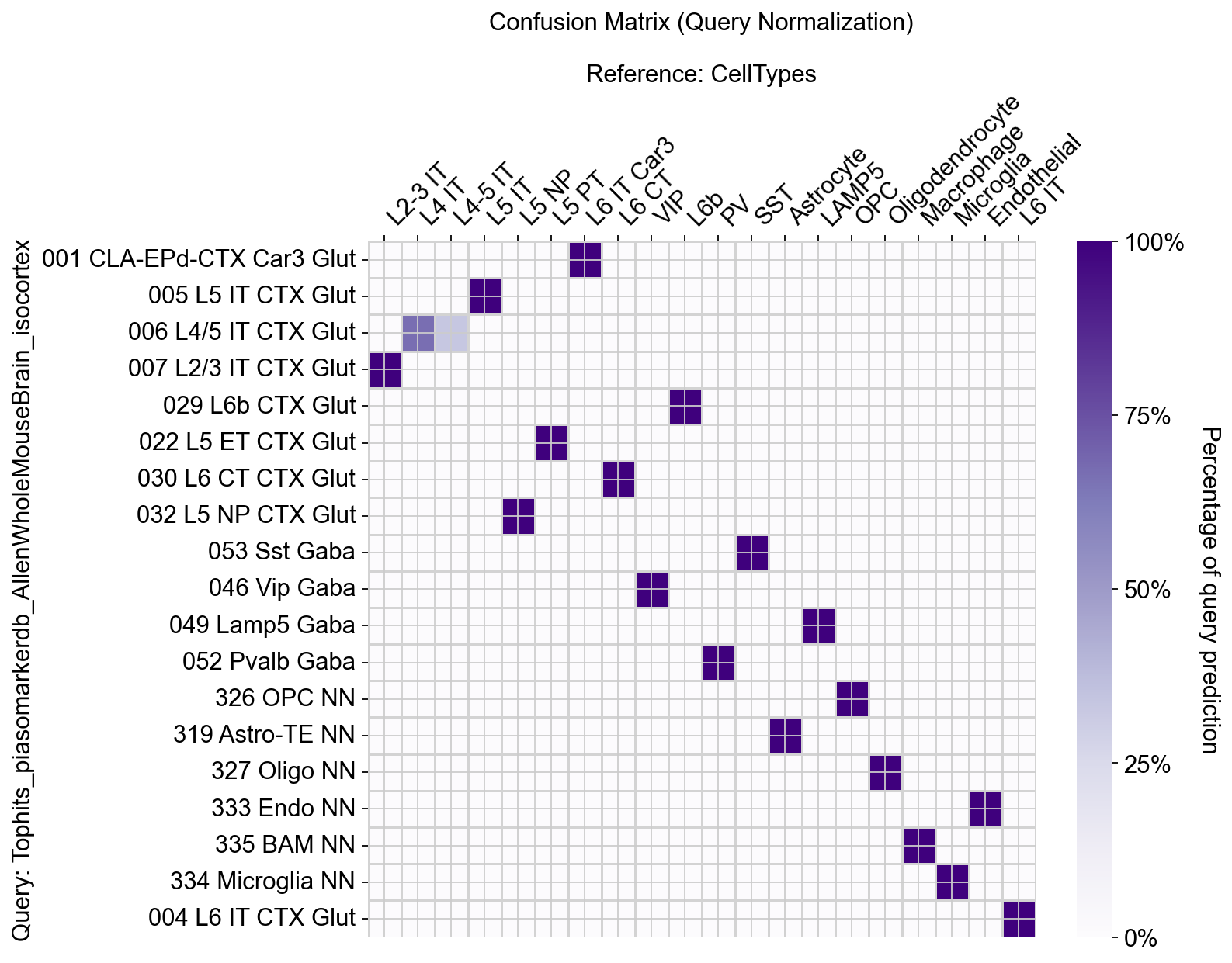

piaso.pl.plotConfusionMatrix(adata, 'Tophits_piasomarkerdb_AllenWholeMouseBrain_isocortex', 'CellTypes', figsize=(10, 8))
../_images/notebooks_31_PIASO_PIASOmarkerDB_API_mouseCortex_64_0.png

Client Usage#

[37]:

client = piaso.tl.PIASOmarkerDB()
print(f"\nClient: {client}")


Client: PIASOmarkerDB(base_url='https://piaso.org/piasomarkerdb')

[38]:

# Get all markers with pagination
print("\n--- Get all markers for a gene (with pagination) ---")
df = client.getAllMarkers(gene="Chrna2", verbose=True)
print(f"Total Chrna2 entries: {len(df)}")
df.head(10)


--- Get all markers for a gene (with pagination) ---
Fetching markers... batch 1 (32 records)
Total: 32 markers
Total Chrna2 entries: 32

[38]:
cell_type condition gene species specificity_score study_publication tissue
0 214 IPN Otp Crisp1 Gaba normal Chrna2 Mouse 11.105208 AllenWholeMouseBrain_Neuron brain
1 214 IPN Otp Crisp1 Gaba normal Chrna2 Mouse 9.941944 AllenWholeMouseBrain_GABA brain
2 IPN Otp Crisp1 Gaba_2 normal; ageing Chrna2 Mouse 9.447727 AllenAgeingBrainAtlas2025_supertype brain
3 Inh_Lmo2 normal Chrna2 Mouse 9.027516 MacoskoWholeMouseBrain_nuclei_Neuron_AnnoL2 brain
4 VIP InN normal CHRNA2 Human 8.613732 XuTeichmann2023_HippocampalFormation hippocampal formation
5 IN-CGE-VIP normal CHRNA2 Human 7.967901 WangKriegstein2025 brain
6 Vip normal; Alzheimer's disease CHRNA2 Human 7.771841 SEAAD2024_MTG_Subclass brain; cortex
7 779_Sst Gaba_4 normal; developmental Chrna2 Mouse 7.725675 AllenDevVisualCortex2025_RNA iscortex; brain
8 780_Sst Gaba_4 normal; developmental Chrna2 Mouse 7.495388 AllenDevVisualCortex2025_RNA iscortex; brain
9 IPN Otp Crisp1 Gaba_1 normal; ageing Chrna2 Mouse 7.416458 AllenAgeingBrainAtlas2025_supertype brain
[39]:

# Get recommended study
print("\n--- Recommended Studies ---")
for species, tissue in [("human", "blood"), ("human", "brain"), ("human", "spleen")]:
    study = client.getRecommendedStudy(species, tissue)
    print(f"  {species}/{tissue}: {study}")


--- Recommended Studies ---
  human/blood: AllenHumanImmuneHealthAtlas_L2
  human/brain: SilettiLinnarssonWholeHumanBrain2023_class
  human/spleen: XuTeichmann2023_Spleen

Invitation code to download from PIASOmarkerDB#

The invitation code is PIASO121125, and the code will be used during the beta testing phase and will be removed at later stages.
