Pre-processing CellRanger outputs (multiple samples, mouse brain)

import piaso
import cosg

stderr

.../site-packages/networkx/utils/backends.py:135: RuntimeWarning: networkx backend defined more than once: nx-loopback
  backends.update(_get_backends("networkx.backends"))

import os
import numpy as np
import pandas as pd
import scanpy as sc
import anndata as ad
import logging
from matplotlib import rcParams
import warnings

# To modify the default figure size, use rcParams.
rcParams['figure.figsize'] = 4, 4
rcParams['font.sans-serif'] = "Arial"
rcParams['font.family'] = "Arial"
sc.settings.verbosity = 3
sc.logging.print_header()
sc.set_figure_params(dpi=80,dpi_save=300, color_map='viridis',facecolor='white')

scanpy==1.10.3 anndata==0.10.8 umap==0.5.7 numpy==1.26.4 scipy==1.13.0 pandas==2.2.3 scikit-learn==1.5.2 statsmodels==0.14.4 igraph==0.11.5 louvain==0.8.2 pynndescent==0.5.13

warnings.simplefilter(action='ignore', category=FutureWarning)

!.../gdrive files download --overwrite --recursive --destination .../Data/Public/PIASO/multiple_samples 1fOVhYBDQirFtrpRPuy7euAHykXuTSe_r

Found 3 files in 1 directories with a total size of 129.2 MB
Creating directory E18_h5_files
Downloaded 3 files in 1 directories with a total size of 129.2 MB

data_path='.../Data/Public/PIASO/multiple_samples/'
time_points = [entry.name for entry in os.scandir(data_path) if entry.is_dir()]
print(time_points)

for time_point in time_points:
    samples = [entry.name for entry in os.scandir(data_path+time_point) if entry.is_dir()]
    print(time_point, samples)

['E18']
E18 ['E18_v3.1_cell', 'E18_v3.1_nuclei', 'E18_v4_cell']

def load_multiple_anndata(
    data_path,
    time_points,
    key_added):
    anndata_list = []
    for time_point in time_points:
        samples = [entry.name for entry in os.scandir(data_path+time_point) if entry.is_dir()]
        for sample in samples:
            try:
                # Load the data
                file_name = os.listdir(data_path+time_point+'/'+sample)[0]
                h5_path=data_path+time_point+'/'+sample+'/'+file_name
                if os.path.exists(h5_path):
                    adata = sc.read_10x_h5(h5_path)
                    print('Loading the h5 file')

                else:
                    adata = sc.read_10x_mtx(data_path+'/'+sample, cache=True)
                adata.var_names_make_unique()
                adata.obs_names_make_unique()
                adata.obs[key_added]=sample
                anndata_list.append(adata)
                print('Sample loaded: ', sample)
            except Exception as e:
                print(f"Error loading {data_path}: {e}")

    return anndata_list

adata_list=load_multiple_anndata(data_path=data_path, time_points=time_points, key_added='Sample')

reading .../Data/Public/PIASO/multiple_samples/E18/E18_v3.1_cell/neuron_10k_v3_filtered_feature_bc_matrix.h5
 (0:00:02)

stderr

.../site-packages/anndata/_core/anndata.py:1820: UserWarning: Variable names are not unique. To make them unique, call `.var_names_make_unique`.
  utils.warn_names_duplicates("var")

Loading the h5 file
Sample loaded:  E18_v3.1_cell
reading .../Data/Public/PIASO/multiple_samples/E18/E18_v3.1_nuclei/SC3_v3_NextGem_DI_Nuclei_5K_SC3_v3_NextGem_DI_Nuclei_5K_count_sample_feature_bc_matrix.h5

stderr

.../site-packages/anndata/_core/anndata.py:1820: UserWarning: Variable names are not unique. To make them unique, call `.var_names_make_unique`.
  utils.warn_names_duplicates("var")

(0:00:00)

stderr

.../site-packages/anndata/_core/anndata.py:1820: UserWarning: Variable names are not unique. To make them unique, call `.var_names_make_unique`.
  utils.warn_names_duplicates("var")

Loading the h5 file
Sample loaded:  E18_v3.1_nuclei
reading .../Data/Public/PIASO/multiple_samples/E18/E18_v4_cell/10k_Mouse_Neurons_3p_gemx_10k_Mouse_Neurons_3p_gemx_count_sample_filtered_feature_bc_matrix.h5

stderr

.../site-packages/anndata/_core/anndata.py:1820: UserWarning: Variable names are not unique. To make them unique, call `.var_names_make_unique`.
  utils.warn_names_duplicates("var")

(0:00:02)

stderr

.../site-packages/anndata/_core/anndata.py:1820: UserWarning: Variable names are not unique. To make them unique, call `.var_names_make_unique`.
  utils.warn_names_duplicates("var")

Loading the h5 file
Sample loaded:  E18_v4_cell

stderr

.../site-packages/anndata/_core/anndata.py:1820: UserWarning: Variable names are not unique. To make them unique, call `.var_names_make_unique`.
  utils.warn_names_duplicates("var")

adata=ad.concat(adata_list, join='outer',index_unique="-")

adata

AnnData object with n_obs × n_vars = 30257 × 37089
    obs: 'Sample'

adata.layers['raw']=adata.X.copy()

adata.var_names_make_unique()

sc.pp.filter_cells(adata, min_genes=200)

filtered out 386 cells that have less than 200 genes expressed

adata.var['mt'] = adata.var_names.str.startswith('mt-')  # annotate the group of mitochondrial genes as 'mt'
sc.pp.calculate_qc_metrics(adata, qc_vars=['mt'], percent_top=None, log1p=False, inplace=True)

ribo_cells = adata.var_names.str.startswith('Rps','Rpl')
adata.obs['pct_counts_ribo'] = np.ravel(100*np.sum(adata[:, ribo_cells].X, axis = 1) / np.sum(adata.X, axis = 1))

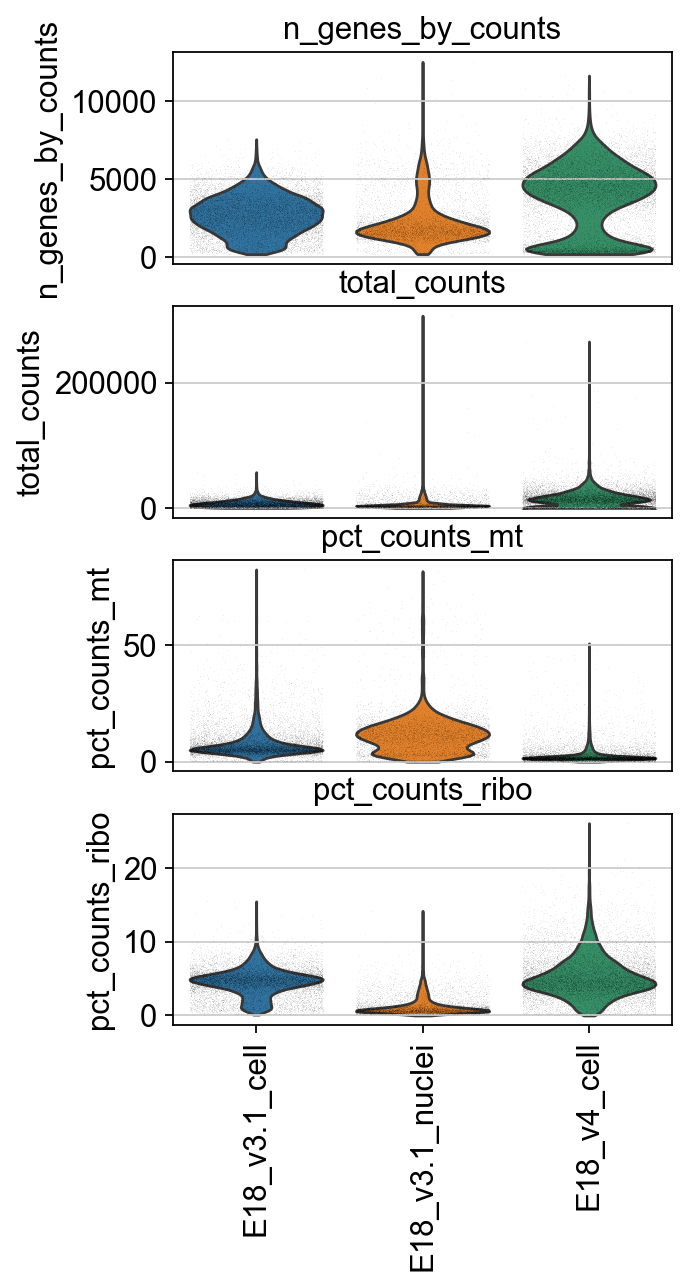

piaso.pl.plot_features_violin(adata,
                              ['n_genes_by_counts', 'total_counts', 'pct_counts_mt','pct_counts_ribo'],
                              width_single=4,
                              groupby='Sample')

experiments=np.unique(adata.obs['Sample'])
adata.obs['scrublet_score']=np.repeat(0,adata.n_obs)
adata.obs['predicted_doublets']=np.repeat(False,adata.n_obs)

import scrublet as scr

for experiment in experiments:
    print(experiment)
    adatai=adata[adata.obs['Sample']==experiment]

    scrub = scr.Scrublet(adatai.X.todense(),random_state=10)
    doublet_scores, predicted_doublets = scrub.scrub_doublets()

    adata.obs['predicted_doublets'][adatai.obs_names]=predicted_doublets

    adata.obs['scrublet_score'][adatai.obs_names]=doublet_scores

E18_v3.1_cell
Preprocessing...
Simulating doublets...
Embedding transcriptomes using PCA...
Calculating doublet scores...
Automatically set threshold at doublet score = 0.39
Detected doublet rate = 2.3%
Estimated detectable doublet fraction = 28.0%
Overall doublet rate:
        Expected   = 10.0%
        Estimated  = 8.1%
Elapsed time: 32.3 seconds
E18_v3.1_nuclei

stderr

/tmp/ipykernel_17593/2312138584.py:10: SettingWithCopyWarning:
A value is trying to be set on a copy of a slice from a DataFrame

See the caveats in the documentation: https://pandas.pydata.org/pandas-docs/stable/user_guide/indexing.html#returning-a-view-versus-a-copy
  adata.obs['predicted_doublets'][adatai.obs_names]=predicted_doublets
/tmp/ipykernel_17593/2312138584.py:12: SettingWithCopyWarning:
A value is trying to be set on a copy of a slice from a DataFrame

See the caveats in the documentation: https://pandas.pydata.org/pandas-docs/stable/user_guide/indexing.html#returning-a-view-versus-a-copy
  adata.obs['scrublet_score'][adatai.obs_names]=doublet_scores

Preprocessing...
Simulating doublets...
Embedding transcriptomes using PCA...
Calculating doublet scores...
Automatically set threshold at doublet score = 0.74
Detected doublet rate = 0.0%
Estimated detectable doublet fraction = 0.5%
Overall doublet rate:
        Expected   = 10.0%
        Estimated  = 3.3%
Elapsed time: 17.2 seconds
E18_v4_cell

stderr

/tmp/ipykernel_17593/2312138584.py:10: SettingWithCopyWarning:
A value is trying to be set on a copy of a slice from a DataFrame

See the caveats in the documentation: https://pandas.pydata.org/pandas-docs/stable/user_guide/indexing.html#returning-a-view-versus-a-copy
  adata.obs['predicted_doublets'][adatai.obs_names]=predicted_doublets

Preprocessing...
Simulating doublets...
Embedding transcriptomes using PCA...
Calculating doublet scores...
Automatically set threshold at doublet score = 0.46
Detected doublet rate = 0.9%
Estimated detectable doublet fraction = 15.3%
Overall doublet rate:
        Expected   = 10.0%
        Estimated  = 5.7%
Elapsed time: 65.7 seconds

stderr

/tmp/ipykernel_17593/2312138584.py:10: SettingWithCopyWarning:
A value is trying to be set on a copy of a slice from a DataFrame

See the caveats in the documentation: https://pandas.pydata.org/pandas-docs/stable/user_guide/indexing.html#returning-a-view-versus-a-copy
  adata.obs['predicted_doublets'][adatai.obs_names]=predicted_doublets

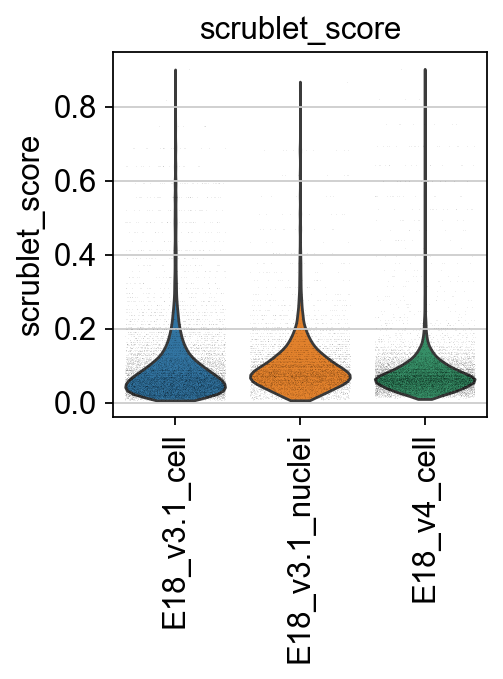

piaso.pl.plot_features_violin(adata,
                              ['scrublet_score'],
                              groupby='Sample',
                              width_single=3,
                              height_single=3)

tmp=np.repeat(False, adata.n_obs)
tmp[adata.obs['predicted_doublets'].values==True]=True
adata.obs['predicted_doublets']=tmp

print(f"# of cells with scrublet score >= 0.2: {np.sum(adata.obs['scrublet_score']>=0.2)} \n# of predicted doublets: {np.sum(adata.obs['predicted_doublets'])}")

# of cells with scrublet score >= 0.2: 1510
# of predicted doublets: 373

sc.pp.normalize_total(adata, target_sum=1e4)
sc.pp.log1p(adata)

adata.layers['log1p']=adata.X.copy()

normalizing counts per cell
    finished (0:00:00)

%%time
piaso.tl.infog(adata,
               layer='raw',
               n_top_genes=3000,)

The normalized data is saved as `infog` in `adata.layers`.
The highly variable genes are saved as `highly_variable` in `adata.var`.
Finished INFOG normalization.
CPU times: user 19 s, sys: 8.06 s, total: 27.1 s
Wall time: 27.1 s

piaso.tl.runSVD(adata,
                use_highly_variable=True,
                n_components=50,
                random_state=10,
                key_added='X_svd',
                layer='infog')

%%time
sc.pp.neighbors(adata,
                use_rep='X_svd',
                n_neighbors=15,
                random_state=10,
                knn=True,
                method="umap")

sc.tl.umap(adata)

computing neighbors
    finished: added to `.uns['neighbors']`
    `.obsp['distances']`, distances for each pair of neighbors
    `.obsp['connectivities']`, weighted adjacency matrix (0:00:40)
computing UMAP
    finished: added
    'X_umap', UMAP coordinates (adata.obsm)
    'umap', UMAP parameters (adata.uns) (0:00:36)
CPU times: user 1min 30s, sys: 685 ms, total: 1min 30s
Wall time: 1min 16s

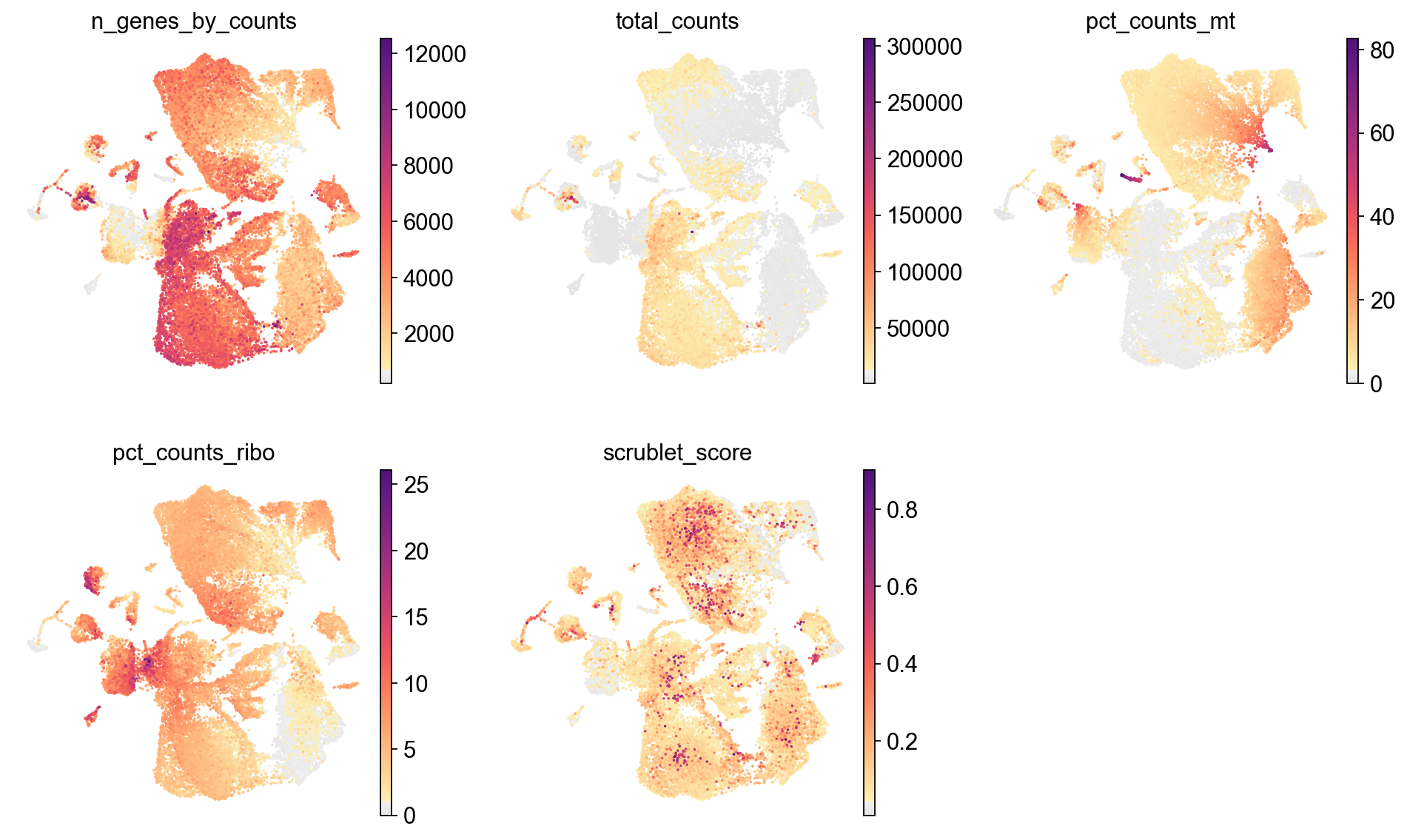

sc.pl.umap(adata,
           color=['n_genes_by_counts', 'total_counts','pct_counts_mt','pct_counts_ribo', 'scrublet_score'],
           cmap=piaso.pl.color.c_color1,
           palette=piaso.pl.color.d_color1,
           ncols=3,
           size=10,
           frameon=False)

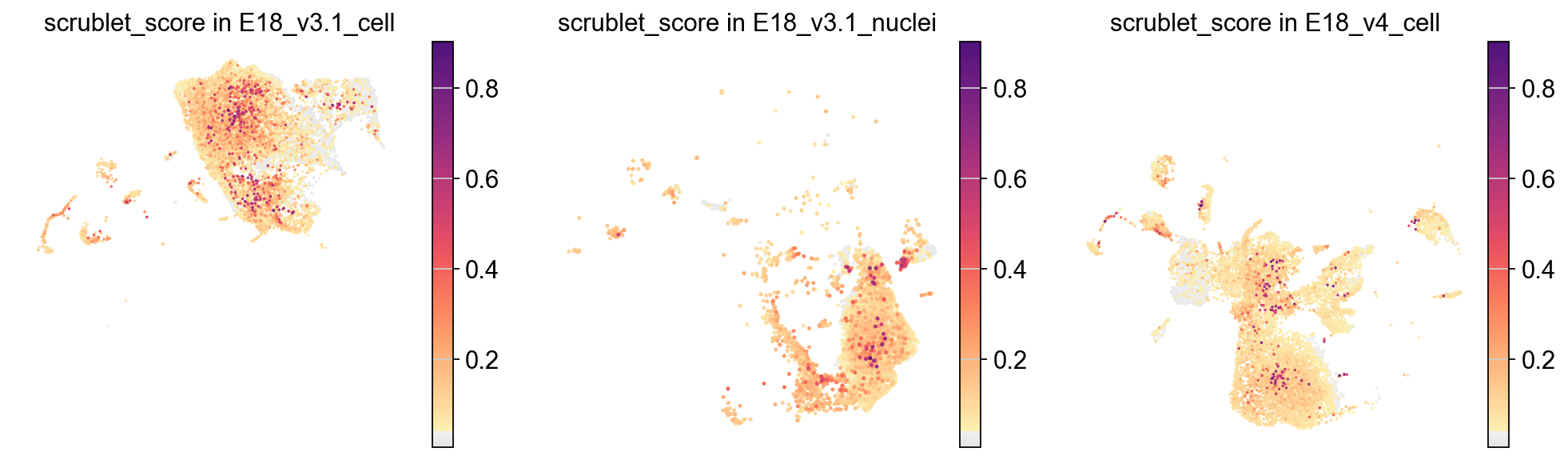

piaso.pl.plot_embeddings_split(adata,
                               color='scrublet_score',
                               cmap=piaso.pl.color.c_color1,
                               splitby='Sample',
                               ncol=3,
                               frameon=False)

%%time
sc.tl.leiden(adata,resolution=0.5,key_added='Leiden')

running Leiden clustering
    finished: found 24 clusters and added
    'Leiden', the cluster labels (adata.obs, categorical) (0:00:03)
CPU times: user 3.85 s, sys: 114 ms, total: 3.96 s
Wall time: 3.96 s

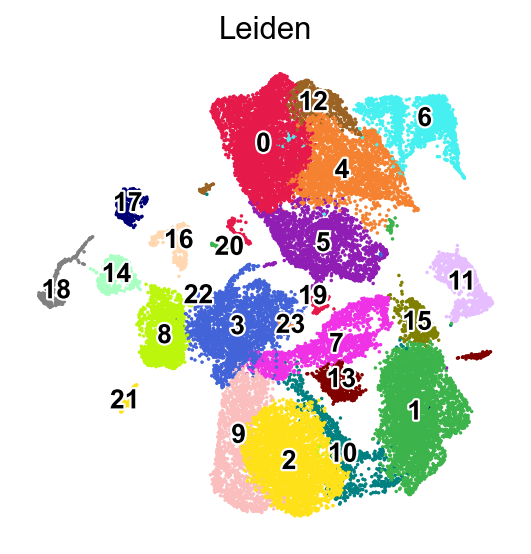

sc.pl.umap(adata,
           color=['Leiden'],
           palette=piaso.pl.color.d_color1,
           legend_fontsize=12,
           legend_fontoutline=2,
           legend_loc='on data',
           ncols=1,
           size=10,
           frameon=False)

WARNING: Length of palette colors is smaller than the number of categories (palette length: 19, categories length: 24. Some categories will have the same color.

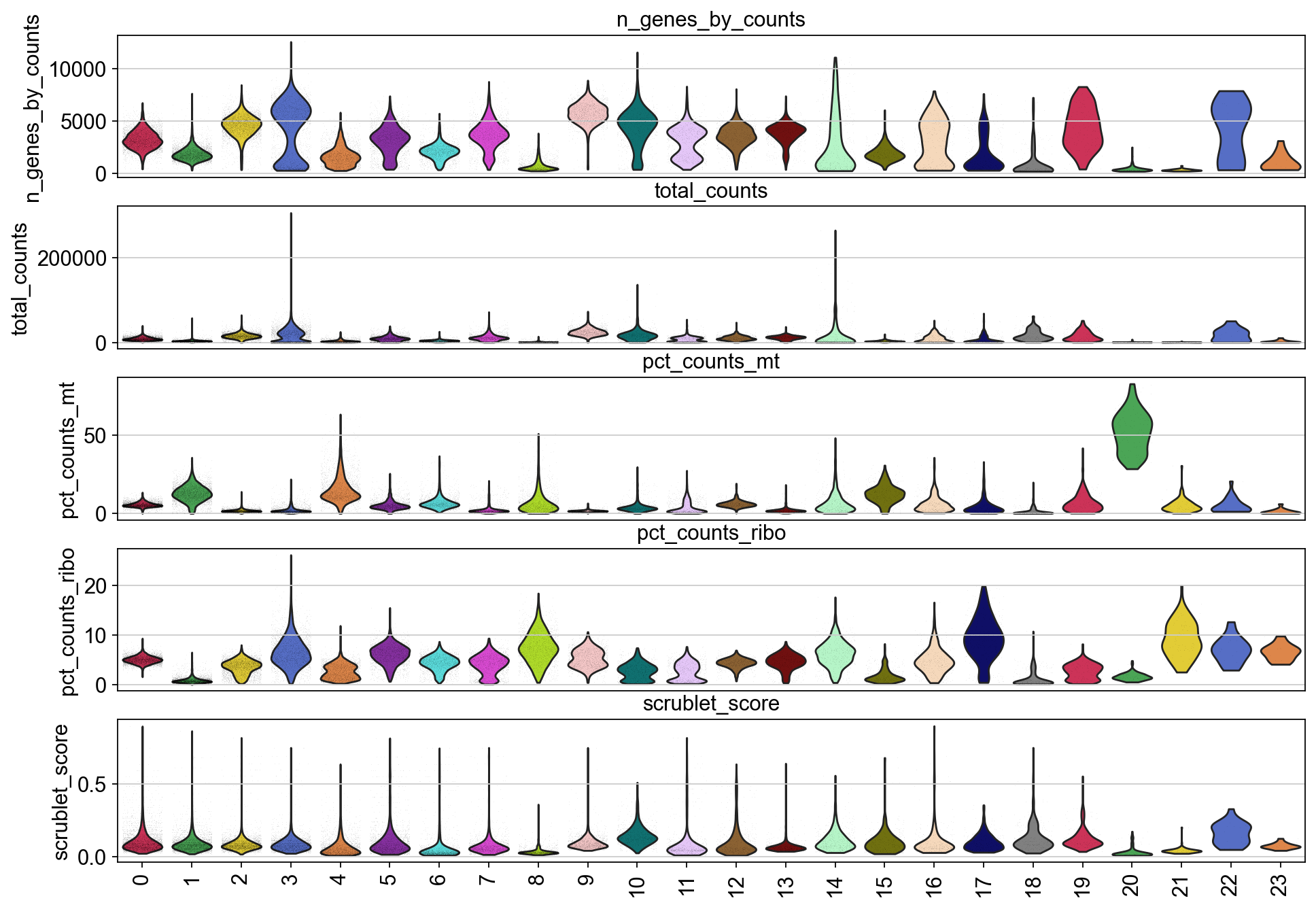

piaso.pl.plot_features_violin(adata,
                              ['n_genes_by_counts', 'total_counts', 'pct_counts_mt','pct_counts_ribo', 'scrublet_score'],
                              groupby='Leiden')

%%time
n_gene=30
cosg.cosg(adata,
          key_added='cosg',
          use_raw=False,
          layer='log1p',
          mu=100,
          expressed_pct=0.1,
          remove_lowly_expressed=True,
          n_genes_user=100,
          groupby='Leiden')

CPU times: user 6.57 s, sys: 2.75 s, total: 9.32 s
Wall time: 9.32 s

sc.tl.dendrogram(adata,groupby='Leiden',use_rep='X_svd')
df_tmp=pd.DataFrame(adata.uns['cosg']['names'][:3,]).T
df_tmp=df_tmp.reindex(adata.uns['dendrogram_'+'Leiden']['categories_ordered'])
marker_genes_list={idx: list(row.values) for idx, row in df_tmp.iterrows()}
marker_genes_list = {k: v for k, v in marker_genes_list.items() if not any(isinstance(x, float) for x in v)}

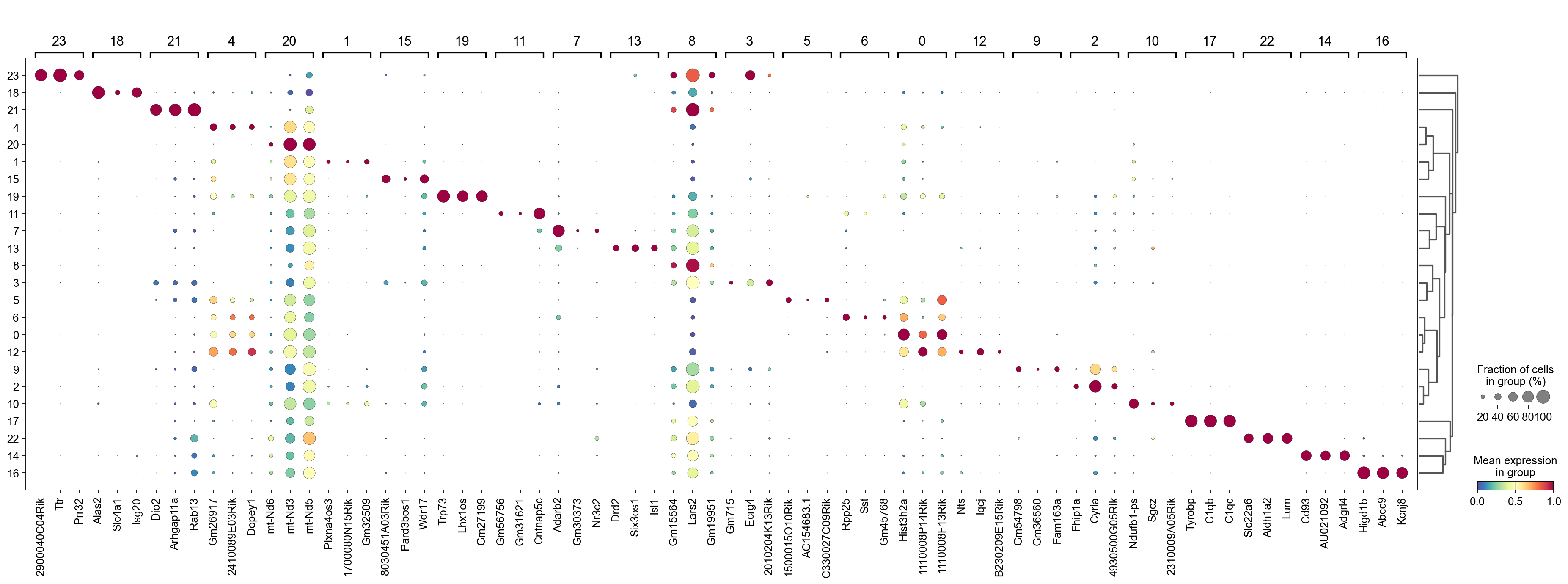

sc.pl.dotplot(adata,
              marker_genes_list,
              groupby='Leiden',
              layer='log1p',
              dendrogram=True,
              swap_axes=False,
              standard_scale='var',
              cmap='Spectral_r')

Storing dendrogram info using `.uns['dendrogram_Leiden']`

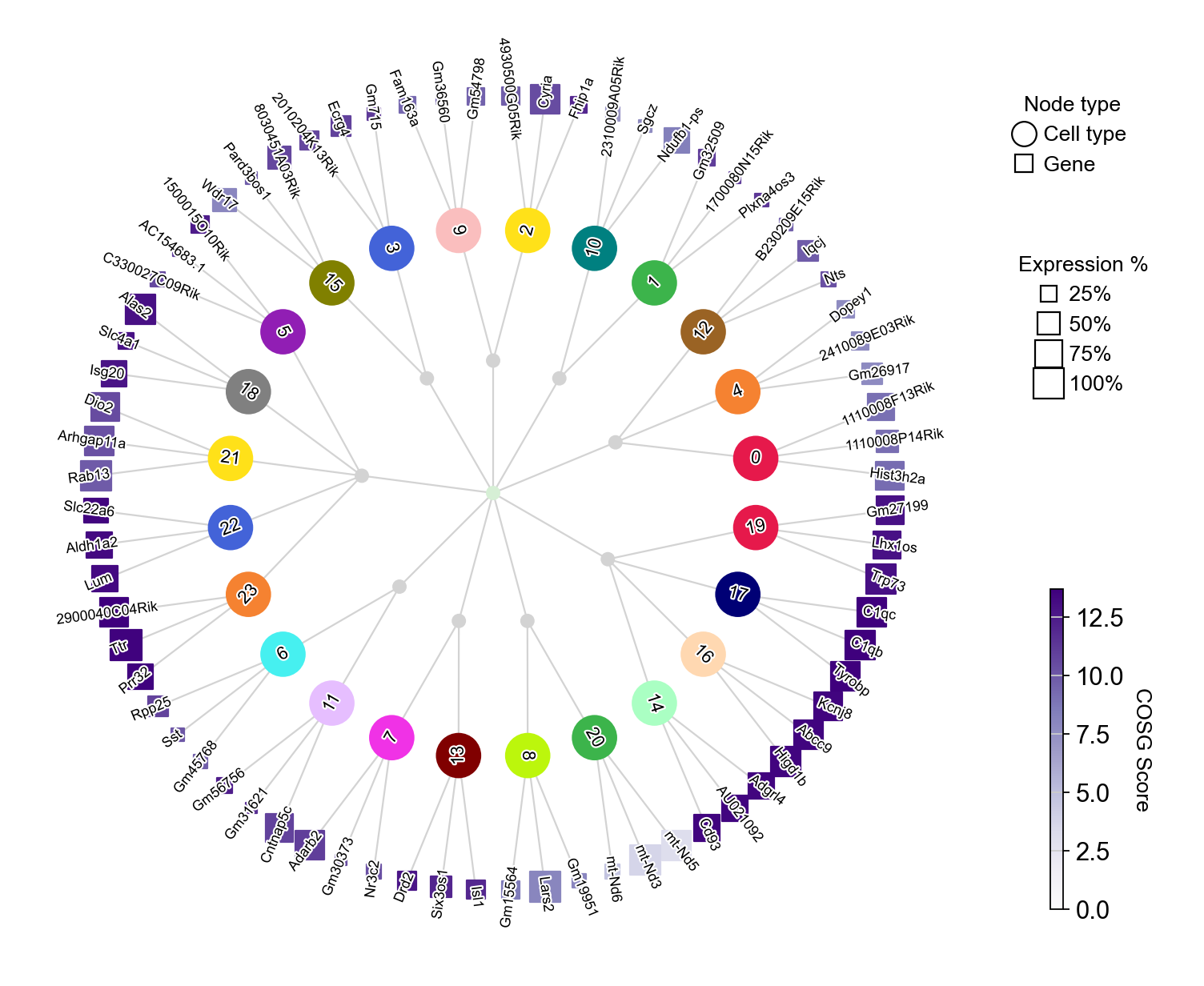

cosg.plotMarkerDendrogram(
     adata,
     group_by="Leiden",
     use_rep="X_svd",
     calculate_dendrogram_on_cosg_scores=True,
     top_n_genes=3,
     radius_step=4.5,
     cmap="Purples",
     gene_label_offset=0.25,
     gene_label_color="black",
     linkage_method="ward",
     distance_metric="correlation",
     hierarchy_merge_scale=0,
     collapse_scale=0.5,
     add_cluster_node_for_single_node_cluster=True,
     palette=None,
     figure_size= (10, 10),
     colorbar_width=0.01,
     gene_color_min=0,
     gene_color_max=None,
     show_figure=True,
)

marker_gene=pd.DataFrame(adata.uns['cosg']['names'])

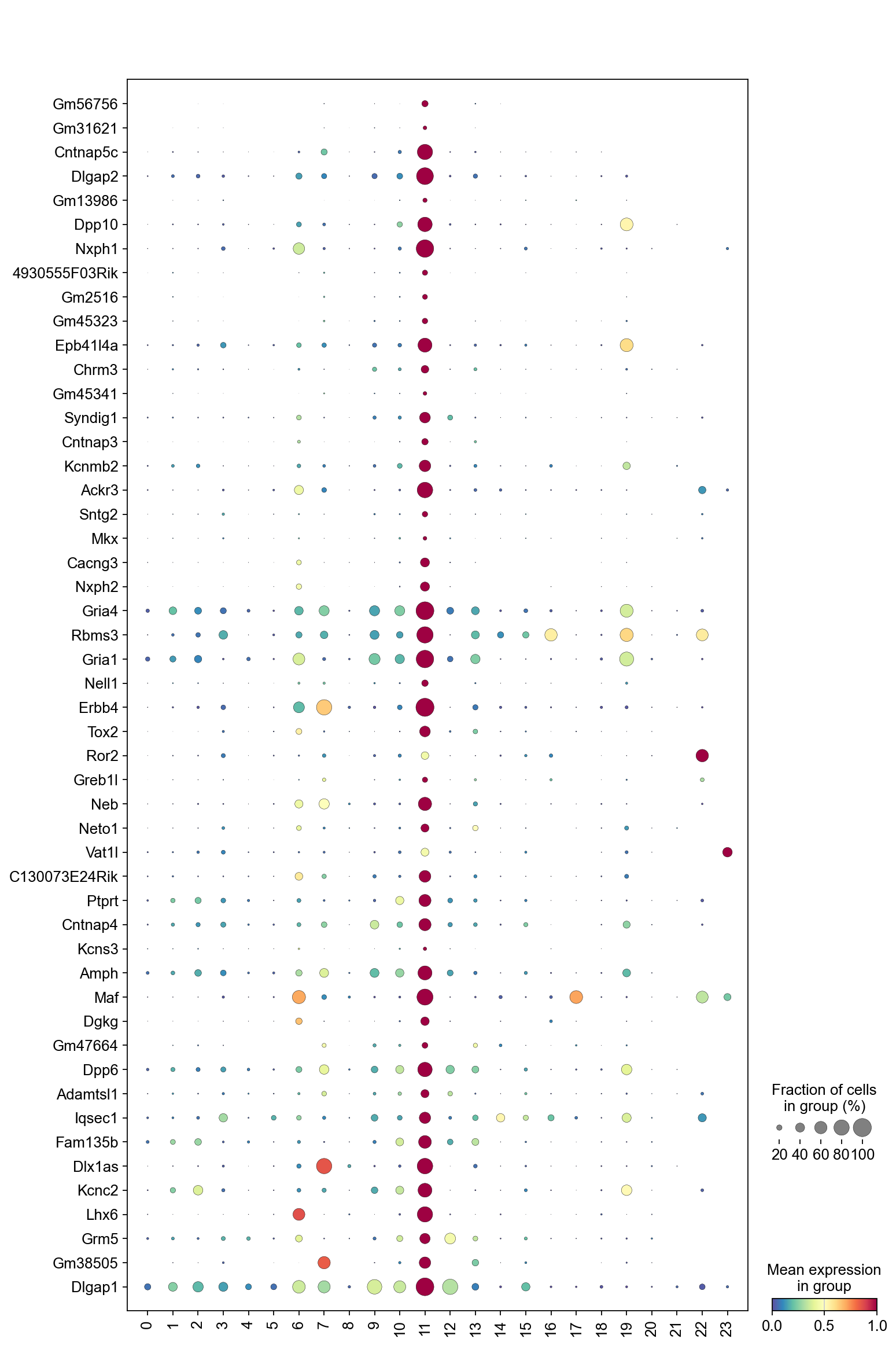

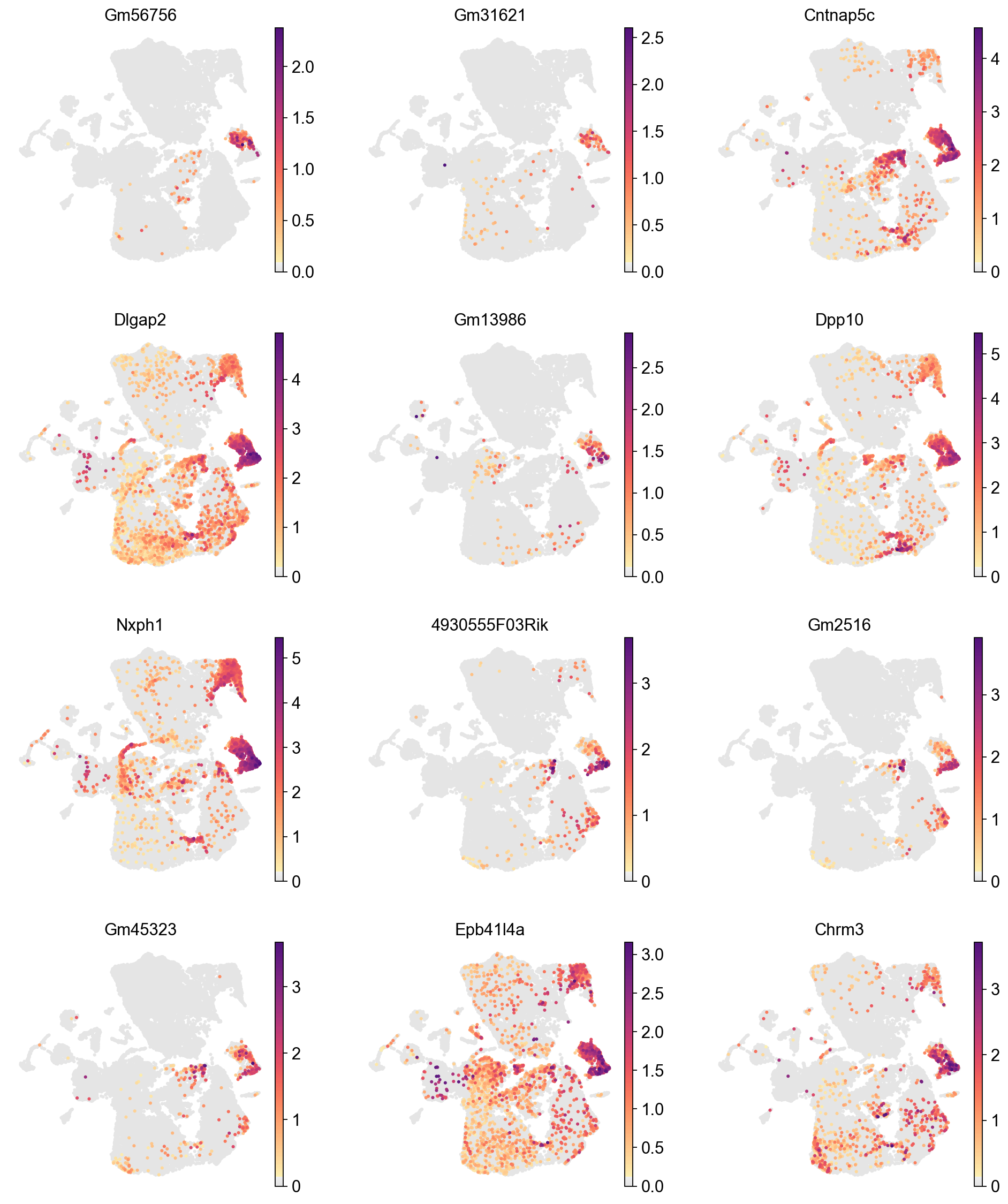

cluster_check='11'
marker_gene[cluster_check].values

array(['Gm56756', 'Gm31621', 'Cntnap5c', 'Dlgap2', 'Gm13986', 'Dpp10',
       'Nxph1', '4930555F03Rik', 'Gm2516', 'Gm45323', 'Epb41l4a', 'Chrm3',
       'Gm45341', 'Syndig1', 'Cntnap3', 'Kcnmb2', 'Ackr3', 'Sntg2', 'Mkx',
       'Cacng3', 'Nxph2', 'Gria4', 'Rbms3', 'Gria1', 'Nell1', 'Erbb4',
       'Tox2', 'Ror2', 'Greb1l', 'Neb', 'Neto1', 'Vat1l', 'C130073E24Rik',
       'Ptprt', 'Cntnap4', 'Kcns3', 'Amph', 'Maf', 'Dgkg', 'Gm47664',
       'Dpp6', 'Adamtsl1', 'Iqsec1', 'Fam135b', 'Dlx1as', 'Kcnc2', 'Lhx6',
       'Grm5', 'Gm38505', 'Dlgap1', 'Tafa5', 'Gabrg3', 'Rph3a', 'Pde4dip',
       'Edaradd', 'Gm20754', 'Fsip1', '4930415C11Rik', '4930509J09Rik',
       'Efcab6', 'Fgd3', 'Spats2l', 'Cdk14', 'Ptchd4', 'Ryr2', 'Gm14204',
       'Lhfpl3', 'Csrnp3', 'Sox1ot', 'Elfn1', 'Shisa6', 'Ripor2', 'Nrxn3',
       'Syt1', 'Rps6ka5', 'Grik1', 'Sox2ot', 'Gm26691', 'Xkr4', 'Tgfb3',
       'A330076H08Rik', 'Brinp3', 'Cbfa2t3', 'Fgf12', 'Bend4', 'Cdr1os',
       'Elmo1', 'Npy', 'Zfp536', 'Prickle2', 'Slc6a1', 'Cacnb4', 'Grip1',
       'Pde2a', 'Gm19938', 'Gad1os', 'Tbc1d9', 'Galnt13', 'Brinp1',
       'Kcnip1'], dtype=object)

sc.pl.dotplot(adata,
              marker_gene[cluster_check].values[:50],
              groupby='Leiden',
              dendrogram=False,
              swap_axes=True,
              standard_scale='var',
              cmap='Spectral_r')

sc.pl.umap(adata,
           color=marker_gene[cluster_check][:12],
           palette=piaso.pl.color.d_color1,
           cmap=piaso.pl.color.c_color1,
           layer='log1p',
           legend_fontsize=12,
           legend_fontoutline=2,
           legend_loc='on data',
           ncols=3,
           size=30,
           frameon=False)

sc.pl.umap(adata,
           color=['Leiden'],
           palette=piaso.pl.color.d_color1,
           cmap=piaso.pl.color.c_color1,
           legend_fontsize=12,
           legend_fontoutline=2,
           legend_loc='on data',
           ncols=1,
           size=10,
           frameon=False)

WARNING: Length of palette colors is smaller than the number of categories (palette length: 19, categories length: 24. Some categories will have the same color.
