Python client and API for accessing PIASOmarkerDB

From the previous release

This page was recovered from the PIASO v1.1.0 documentation and has not been re-run against the current release. The code is preserved as published; some calls may have changed. The pages under All tutorials are the ones executed against this release.

The original v1.1.0 site is archived at https://genecell.github.io/PIASO/.

Python client and API for accessing PIASOmarkerDB

import piaso

stderr

.../site-packages/tqdm/auto.py:21: TqdmWarning: IProgress not found. Please update jupyter and ipywidgets. See https://ipywidgets.readthedocs.io/en/stable/user_install.html
  from .autonotebook import tqdm as notebook_tqdm

import numpy as np
import pandas as pd
import scanpy as sc
sc.set_figure_params(dpi=80,dpi_save=300, color_map='viridis',facecolor='white')
from matplotlib import rcParams
# To modify the default figure size, use rcParams.
rcParams['figure.figsize'] = 4, 4
rcParams['font.sans-serif'] = "Arial"
rcParams['font.family'] = "Arial"
sc.settings.verbosity = 3
sc.logging.print_header()

stderr

/tmp/ipykernel_4126893/1353975569.py:11: RuntimeWarning: Failed to import dependencies for application/vnd.jupyter.widget-view+json representation. (ModuleNotFoundError: No module named 'ipywidgets')
  sc.logging.print_header()

| Dependency         | Version               |
| ------------------ | --------------------- |
| h5py               | 3.15.1                |
| tqdm               | 4.67.1                |
| stack_data         | 0.6.3                 |
| wcwidth            | 0.2.13                |
| pillow             | 12.0.0                |
| joblib             | 1.5.3                 |
| requests           | 2.32.5                |
| debugpy            | 1.8.16                |
| texttable          | 1.7.0                 |
| kiwisolver         | 1.4.9                 |
| asttokens          | 3.0.0                 |
| six                | 1.17.0                |
| natsort            | 8.4.0                 |
| pure_eval          | 0.2.3                 |
| charset-normalizer | 3.4.4                 |
| python-dateutil    | 2.9.0.post0           |
| torch              | 2.9.1 (2.9.1+cu128)   |
| tornado            | 6.5.4                 |
| parso              | 0.8.5                 |
| pytz               | 2025.2                |
| leidenalg          | 0.10.2                |
| jedi               | 0.19.2                |
| networkx           | 3.4.2                 |
... [21 more lines]

path = '.../Analysis/Jupyter/Python/Longitudinal/Integration'
import sys
sys.path.append(path)
from env_settings import *
sc.set_figure_params(dpi=80,dpi_save=300, color_map='viridis',facecolor='white')
rcParams['figure.figsize'] = 4, 4
save_dir='.../Result/single-cell/Methods/COSG/Database'
### Create the save_dir if not existed
!mkdir -p {save_dir}

adata=sc.read('.../Result/single-cell/Enhancer/AdultCortexMultiome/AdultCortexMultiomeRNA_integrated_anno.h5ad')

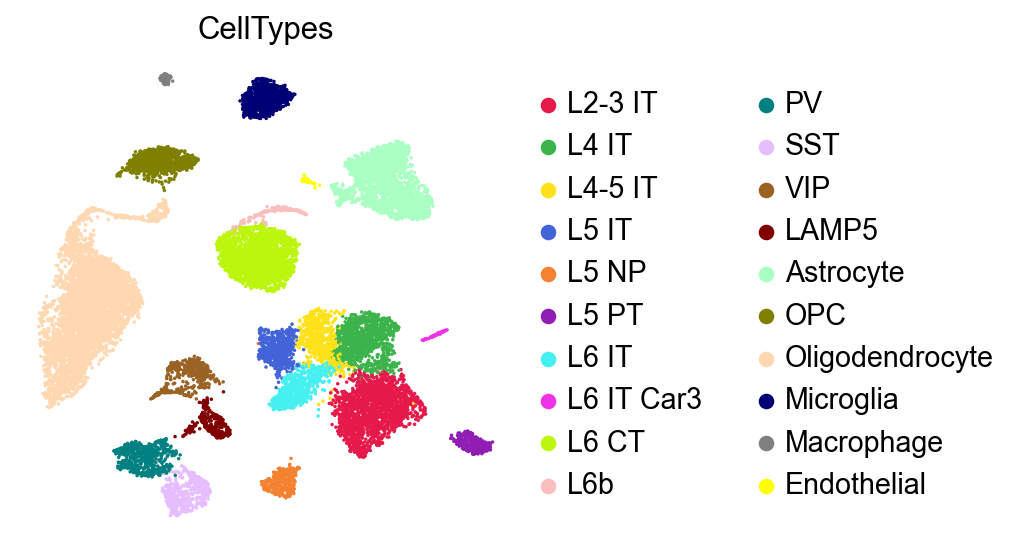

sc.pl.umap(adata,
           color=['CellTypes'],
           palette=self_palette2,
           # legend_loc='on data',
           legend_fontoutline=2,
           legend_fontweight=5,
           cmap='Spectral_r',
           ncols=3,
           size=10,
           frameon=False)

marker_df = piaso.tl.queryPIASOmarkerDB(gene="Fezf2")

marker_df.head(10)

marker_df = piaso.tl.queryPIASOmarkerDB(gene=["Fezf2", "Satb2", "Tbr1"])

marker_df.head(10)

marker_df = piaso.tl.queryPIASOmarkerDB(
        study="AllenWholeMouseBrain_isocortex",
        species="mouse",
        # limit=10
)

marker_df

marker_df = piaso.tl.queryPIASOmarkerDB(
    species="Human",
    min_score=8.0,
    limit=100
)

marker_df.head(20)

marker_df, marker_dict = piaso.tl.queryPIASOmarkerDB(
    study='AllenWholeMouseBrain_isocortex',
        # species="Human",
        # min_score=3.0,
        # limit=500,
    as_dict=True
)

print(f"DataFrame shape: {marker_df.shape}")
print(f"Cell types in dict: {len(marker_dict)}")

# Show sample
for ct, genes in list(marker_dict.items())[:3]:
    print(f"\n  {ct}:")
    print(f"    Markers: {genes[:5]}...")

DataFrame shape: (1300, 7)
Cell types in dict: 26

  056 Sst Chodl Gaba:
    Markers: ['Chodl', 'Krt18', 'P2rx2', '4930545L08Rik', 'Tacr1']...

  051 Pvalb chandelier Gaba:
    Markers: ['Vmn1r209', 'Vmn1r207-ps', 'Dbhos', 'Nkx2-1', 'Sfta3-ps']...

  330 VLMC NN:
    Markers: ['Slc22a6', 'Aldh1a2', 'Slc13a4', 'Fam180a', 'Lum']...

studies = piaso.tl.queryPIASOmarkerDB(list_studies=True)
print(f"Total studies: {len(studies)}")
print("First 10 studies:")
for study in studies[:10]:
    print(f"  - {study}")

Total studies: 36
First 10 studies:
  - AllenAgeingBrainAtlas2025_supertype
  - AllenDevVisualCortex2025_RNA
  - AllenHumanImmuneHealthAtlas_L2
  - AllenHumanImmuneHealthAtlas_L3
  - AllenWholeMouseBrain_GABA
  - AllenWholeMouseBrain_Neuron
  - AllenWholeMouseBrain_NonNeuron
  - AllenWholeMouseBrain_isocortex
  - AsianImmuneDiversityAtlasPhase1v2_5prime
  - DiBellaArlotta2021

def example_analyze_single_list():
    """Demonstrate single gene list analysis."""
    print("\n" + "="*60)
    print("Example 4: Analyze Single Gene List")
    print("="*60)

    # T-cell marker genes
    t_cell_genes = ["CD3E", "CD3D", "CD8A", "GZMK", "PRF1", "IFNG"]

    print(f"\n--- Analyzing genes: {t_cell_genes} ---")
    df = piaso.tl.analyzeMarkers(t_cell_genes, species="Human")

    print(f"Found {len(df)} cell type matches")
    if len(df) > 0:
        print("\nTop 5 matches:")
        print(df[['cell_type', 'matched_gene_count', 'avg_specificity']].head())

query_genes = ["Syt6", "Tle4", "Hs3st4", "Col6a1", "Zfpm2", "Sema5a", "Bcl11b", "Fezf2", "Foxp2", "Col12a1"]
print(f"\n--- Analyzing genes: {query_genes} ---")
marker_df = piaso.tl.analyzeMarkers(query_genes)
marker_df.head()

--- Analyzing genes: ['Syt6', 'Tle4', 'Hs3st4', 'Col6a1', 'Zfpm2', 'Sema5a', 'Bcl11b', 'Fezf2', 'Foxp2', 'Col12a1'] ---

gene_sets = {
    'Cluster_0': ['Cx3cr1', 'P2ry12', 'Teme119', 'Csf1r', 'Itgam', 'Aif1', 'Trem2'],
    'Cluster_1': ["Syt6", "Tle4", "Hs3st4", "Col6a1", "Zfpm2", "Sema5a", "Bcl11b", "Fezf2", "Foxp2", "Col12a1"],
}

print("\n--- Input Gene Sets ---")
for name, genes in gene_sets.items():
    print(f"  {name}: {genes}")

print("\n--- Analyzing... ---")
# results, top_hits = piaso.tl.analyzeMarkers(gene_sets, species="Mouse")
results, top_hits = piaso.tl.analyzeMarkers(gene_sets)

print("\nCell Type Predictions:")
for cluster, cell_type in top_hits.items():
    print(f"  {cluster}: {cell_type}")

# Show detailed results
print(f"\n--- Detailed results for Cluster_0 ---")
if 'Cluster_0' in results and len(results['Cluster_0']) > 0:
    print(results['Cluster_0'][['cell_type', 'matched_gene_count',  'avg_specificity',  'study_publication']].head())

print(f"\n--- Detailed results for Cluster_1 ---")
if 'Cluster_0' in results and len(results['Cluster_1']) > 0:
    print(results['Cluster_1'][['cell_type', 'matched_gene_count',  'avg_specificity',  'study_publication']].head())

--- Input Gene Sets ---
  Cluster_0: ['Cx3cr1', 'P2ry12', 'Teme119', 'Csf1r', 'Itgam', 'Aif1', 'Trem2']
  Cluster_1: ['Syt6', 'Tle4', 'Hs3st4', 'Col6a1', 'Zfpm2', 'Sema5a', 'Bcl11b', 'Fezf2', 'Foxp2', 'Col12a1']

--- Analyzing... ---

Cell Type Predictions:
  Cluster_0: Microglia
  Cluster_1: EN-L6-CT

--- Detailed results for Cluster_0 ---
             cell_type  matched_gene_count  avg_specificity  \
0            Microglia                   5        13.000120
1                Mgl_9                   5         7.875872
2  5312_Microglia NN_1                   4         8.265331
3    P2RY12+ microglia                   4         7.782557
4               Mgl_11                   4         7.375123

                              study_publication
0                            DiBellaArlotta2021
1  SilettiLinnarssonWholeHumanBrain2023_subtype
2                  AllenDevVisualCortex2025_RNA
3          XuTeichmann2023_HippocampalFormation
4  SilettiLinnarssonWholeHumanBrain2023_subtype

... [14 more lines]

import cosg

%%time
groupby='CellTypes'
cosg.cosg(adata,
    key_added='cosg',
    use_raw=False, layer='log1p', ## e.g., if you want to use the log1p layer in adata
    mu=100,
    expressed_pct=0.1,
    remove_lowly_expressed=True,
    n_genes_user=adata.n_vars, ### Use all the genes, to enable the calculation of transformed COSG scores
    # n_genes_user=100,
    groupby=groupby,
    return_by_group=True,
    verbosity=1
)

Finished identifying marker genes by COSG, and the results are in adata.uns['cosg'].
CPU times: user 2.54 s, sys: 366 ms, total: 2.9 s
Wall time: 2.91 s

cosg_marker_df=pd.DataFrame(adata.uns['cosg']['names']).head(50)

cosg_marker_df.head()

%%time
results, top_hits = piaso.tl.analyzeMarkers(
        cosg_marker_df,
        n_top_genes=50,
        species="mouse",
)

CPU times: user 576 ms, sys: 19.5 ms, total: 596 ms
Wall time: 3.56 s

print("\nCell Type Predictions:")
for cluster, cell_type in top_hits.items():
    print(f"  {cluster}: {cell_type}")

Cell Type Predictions:
  L2-3 IT: 007 L2/3 IT CTX Glut
  L4 IT: 100_L4/5 IT CTX Glut_6
  L4-5 IT: L4/5 IT CTX Glut_4
  L5 IT: 005 L5 IT CTX Glut
  L5 NP: 032 L5 NP CTX Glut
  L5 PT: 022 L5 ET CTX Glut
  L6 IT: 004 L6 IT CTX Glut
  L6 IT Car3: 001 CLA-EPd-CTX Car3 Glut
  L6 CT: 437_L6 CT CTX Glut_1
  L6b: 029 L6b CTX Glut
  PV: 052 Pvalb Gaba
  SST: Sst Gaba_7
  VIP: 046 Vip Gaba
  LAMP5: 049 Lamp5 Gaba
  Astrocyte: 319 Astro-TE NN
  OPC: OPC NN_1
  Oligodendrocyte: 327 Oligo NN
  Microglia: 334 Microglia NN
  Macrophage: 335 BAM NN
  Endothelial: Endo_Flt1

results['L2-3 IT'].head(5)

adata.obs['Tophits_piasomarkerdb']=adata.obs['CellTypes'].map(top_hits)

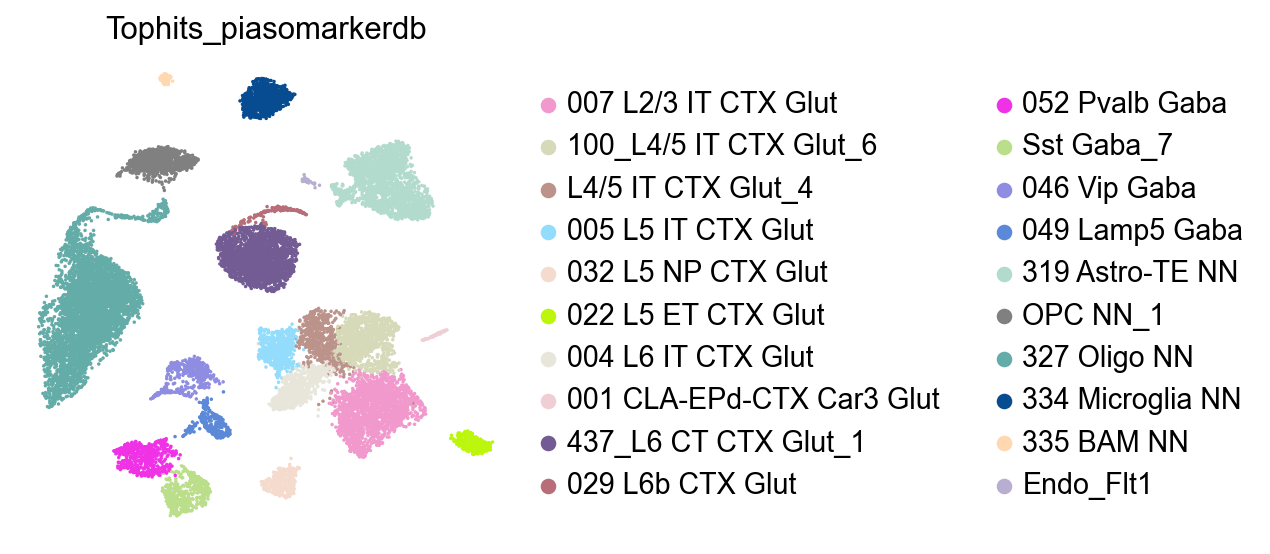

sc.pl.umap(adata,
           color=['Tophits_piasomarkerdb'],
           palette=piaso.pl.color.d_color10,
           # legend_loc='on data',
           legend_fontoutline=2,
           legend_fontweight=5,
           cmap='Spectral_r',
           ncols=3,
           size=10,
           frameon=False)

sc.pl.umap(adata,
           color=['CellTypes'],
           palette=piaso.pl.color.d_color4,
           # legend_loc='on data',
           legend_fontoutline=2,
           legend_fontweight=5,
           cmap='Spectral_r',
           ncols=3,
           size=10,
           frameon=False)

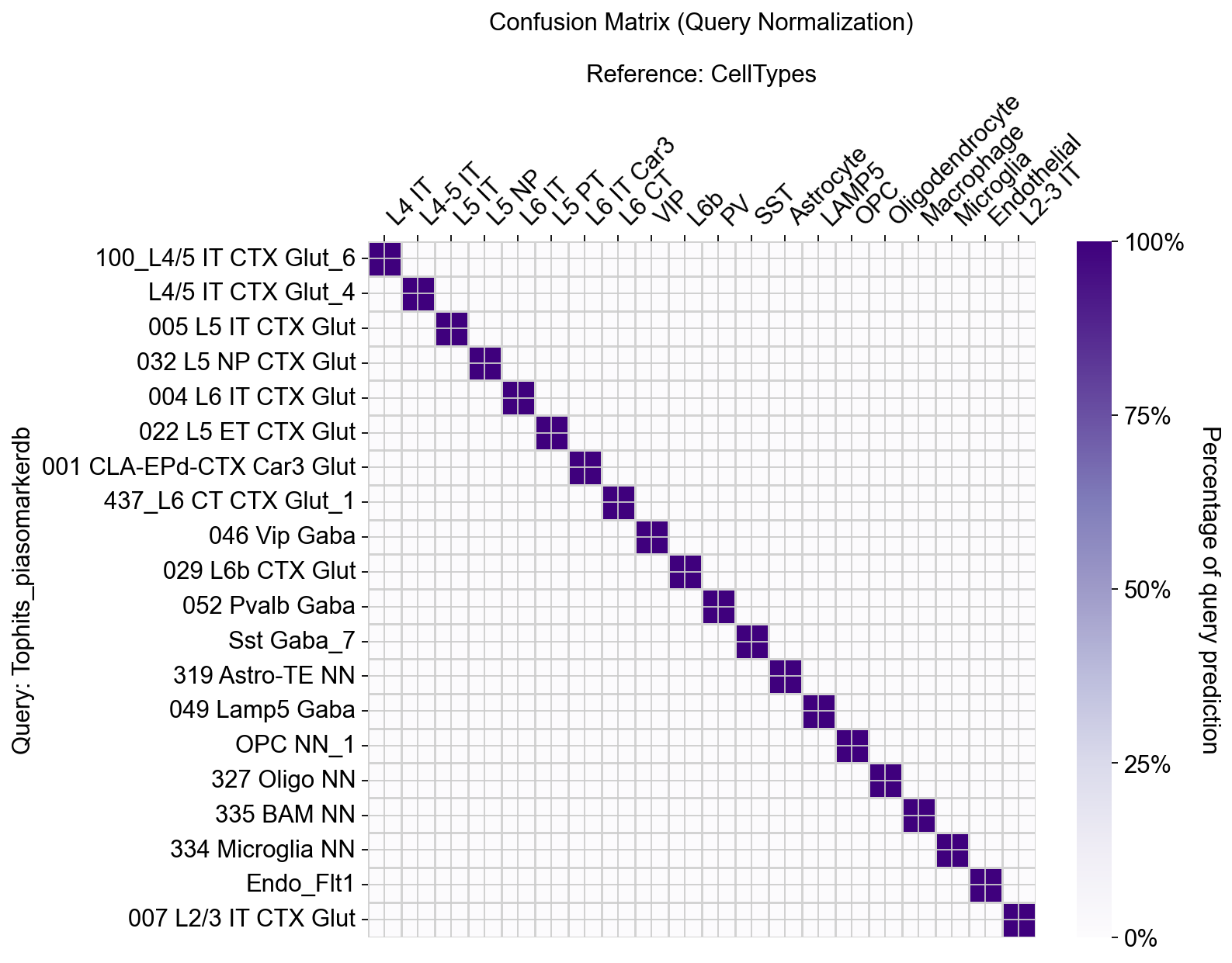

piaso.pl.plotConfusionMatrix(adata, 'Tophits_piasomarkerdb', 'CellTypes', figsize=(10, 8))

%%time
results, top_hits = piaso.tl.analyzeMarkers(
        cosg_marker_df,
        n_top_genes=50,
        min_genes=5,
        studies=['AllenWholeMouseBrain_isocortex'],
        species="mouse"
)

CPU times: user 461 ms, sys: 7.07 ms, total: 469 ms
Wall time: 3.58 s

top_hits

{'L2-3 IT': '007 L2/3 IT CTX Glut',
 'L4 IT': '006 L4/5 IT CTX Glut',
 'L4-5 IT': '006 L4/5 IT CTX Glut',
 'L5 IT': '005 L5 IT CTX Glut',
 'L5 NP': '032 L5 NP CTX Glut',
 'L5 PT': '022 L5 ET CTX Glut',
 'L6 IT': '004 L6 IT CTX Glut',
 'L6 IT Car3': '001 CLA-EPd-CTX Car3 Glut',
 'L6 CT': '030 L6 CT CTX Glut',
 'L6b': '029 L6b CTX Glut',
 'PV': '052 Pvalb Gaba',
 'SST': '053 Sst Gaba',
 'VIP': '046 Vip Gaba',
 'LAMP5': '049 Lamp5 Gaba',
 'Astrocyte': '319 Astro-TE NN',
 'OPC': '326 OPC NN',
 'Oligodendrocyte': '327 Oligo NN',
 'Microglia': '334 Microglia NN',
 'Macrophage': '335 BAM NN',
 'Endothelial': '333 Endo NN'}

adata.obs['Tophits_piasomarkerdb_AllenWholeMouseBrain_isocortex']=adata.obs['CellTypes'].map(top_hits)

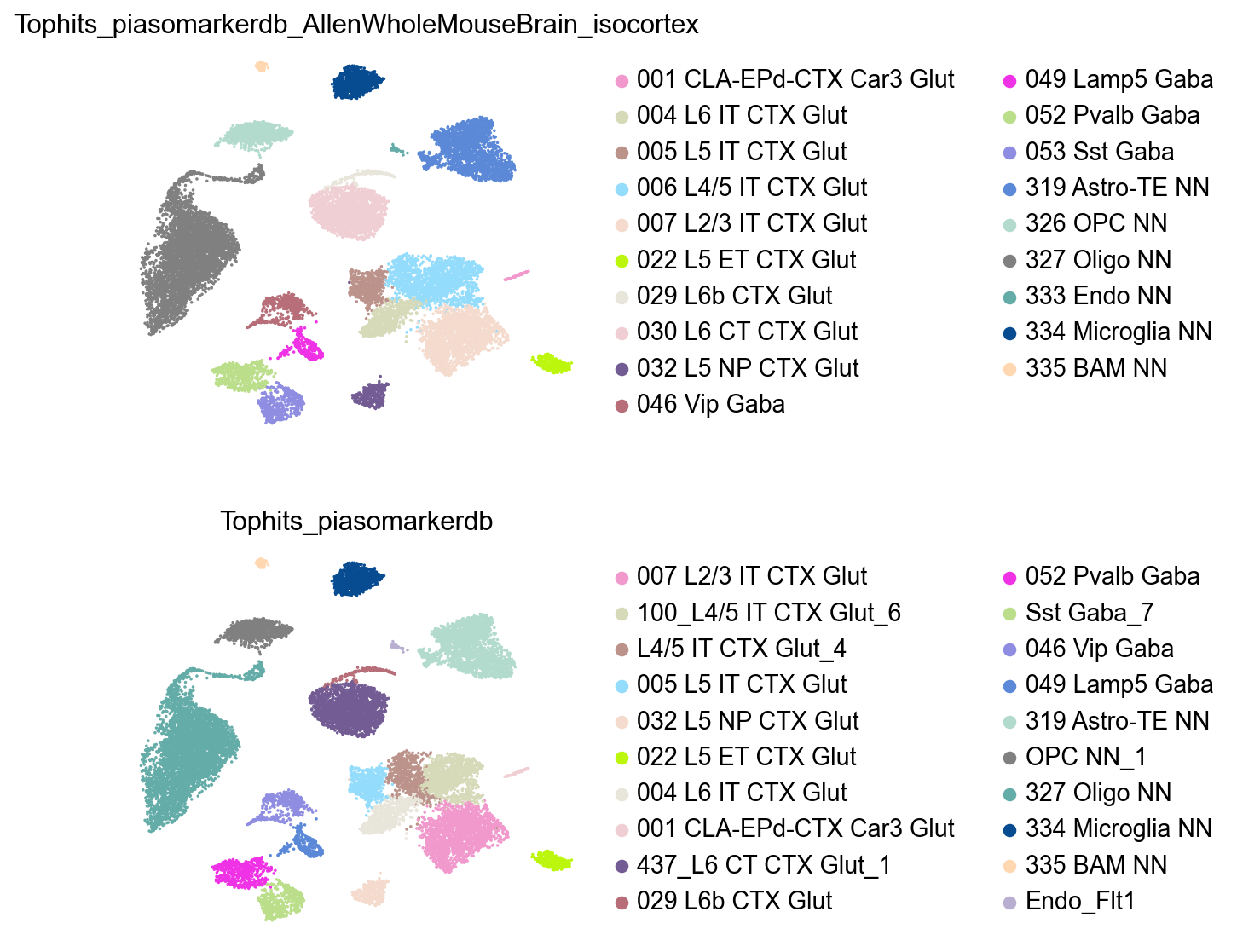

sc.pl.umap(adata,
           color=[
               'Tophits_piasomarkerdb_AllenWholeMouseBrain_isocortex',
               'Tophits_piasomarkerdb'
                 ],
           palette=piaso.pl.color.d_color10,
           # legend_loc='on data',
           legend_fontoutline=2,
           legend_fontweight=5,
           cmap='Spectral_r',
           ncols=1,
           size=10,
           frameon=False)

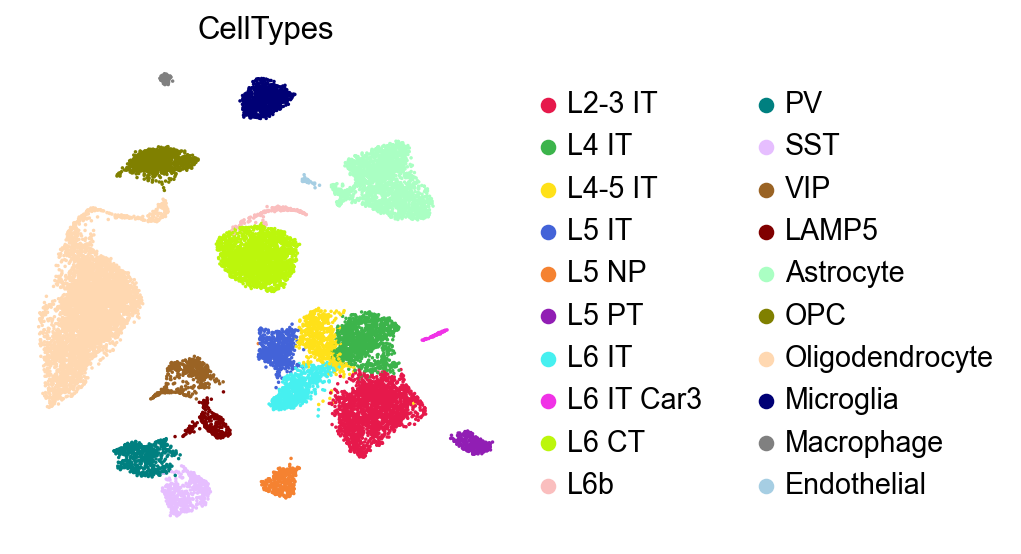

sc.pl.umap(adata,
           color=['CellTypes'],
           palette=piaso.pl.color.d_color4,
           # legend_loc='on data',
           legend_fontoutline=2,
           legend_fontweight=5,
           cmap='Spectral_r',
           ncols=3,
           size=10,
           frameon=False)

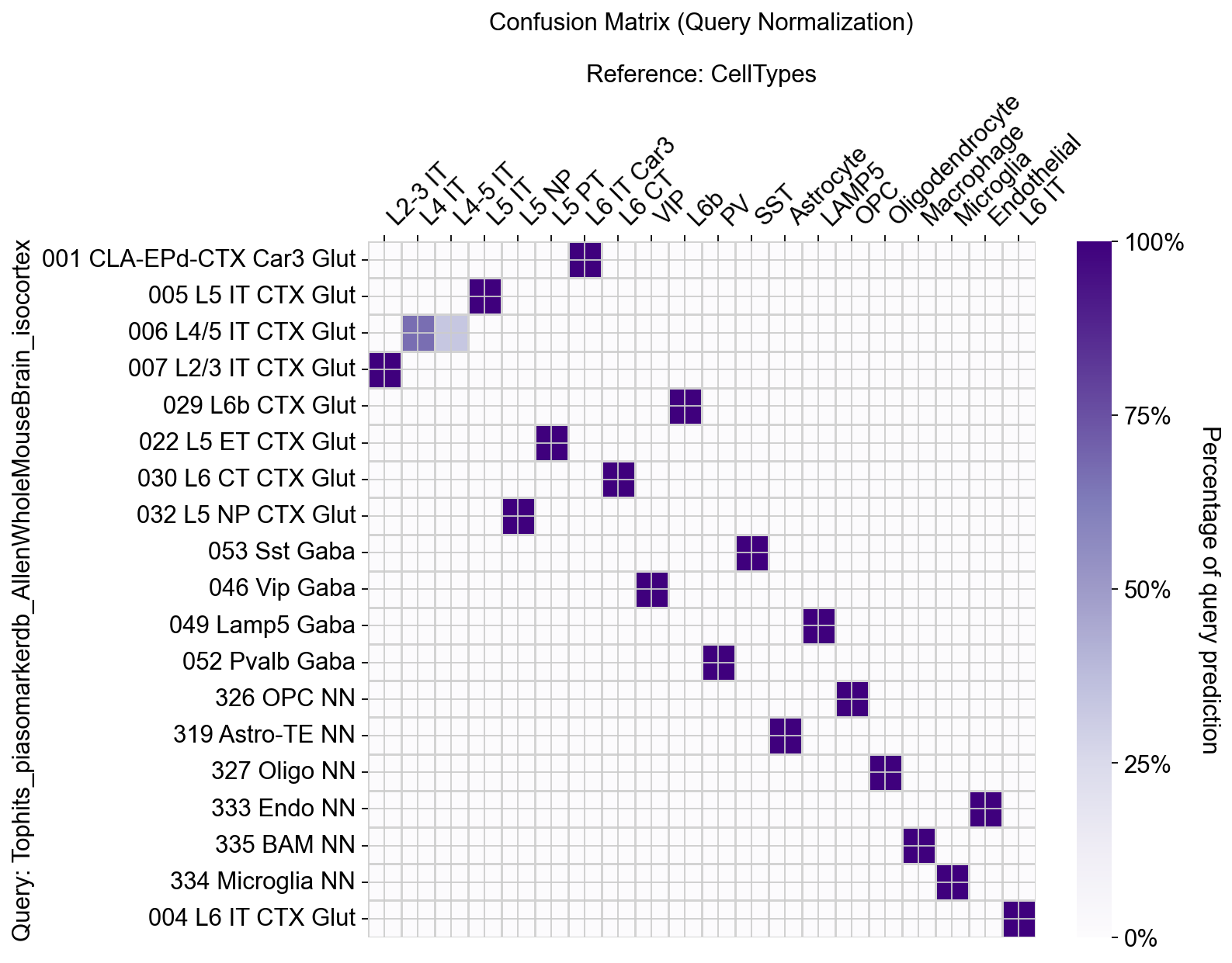

piaso.pl.plotConfusionMatrix(adata, 'Tophits_piasomarkerdb_AllenWholeMouseBrain_isocortex', 'CellTypes', figsize=(10, 8))

client = piaso.tl.PIASOmarkerDB()
print(f"\nClient: {client}")

Client: PIASOmarkerDB(base_url='https://piaso.org/piasomarkerdb')

# Get all markers with pagination
print("\n--- Get all markers for a gene (with pagination) ---")
df = client.getAllMarkers(gene="Chrna2", verbose=True)
print(f"Total Chrna2 entries: {len(df)}")
df.head(10)

--- Get all markers for a gene (with pagination) ---
Fetching markers... batch 1 (32 records)
Total: 32 markers
Total Chrna2 entries: 32

# Get recommended study
print("\n--- Recommended Studies ---")
for species, tissue in [("human", "blood"), ("human", "brain"), ("human", "spleen")]:
    study = client.getRecommendedStudy(species, tissue)
    print(f"  {species}/{tissue}: {study}")

--- Recommended Studies ---
  human/blood: AllenHumanImmuneHealthAtlas_L2
  human/brain: SilettiLinnarssonWholeHumanBrain2023_class
  human/spleen: XuTeichmann2023_Spleen
